Modaprax
Wall Mounted Garden Frame for 90x90 Posts
Timber not included
Couldn't load pickup availability

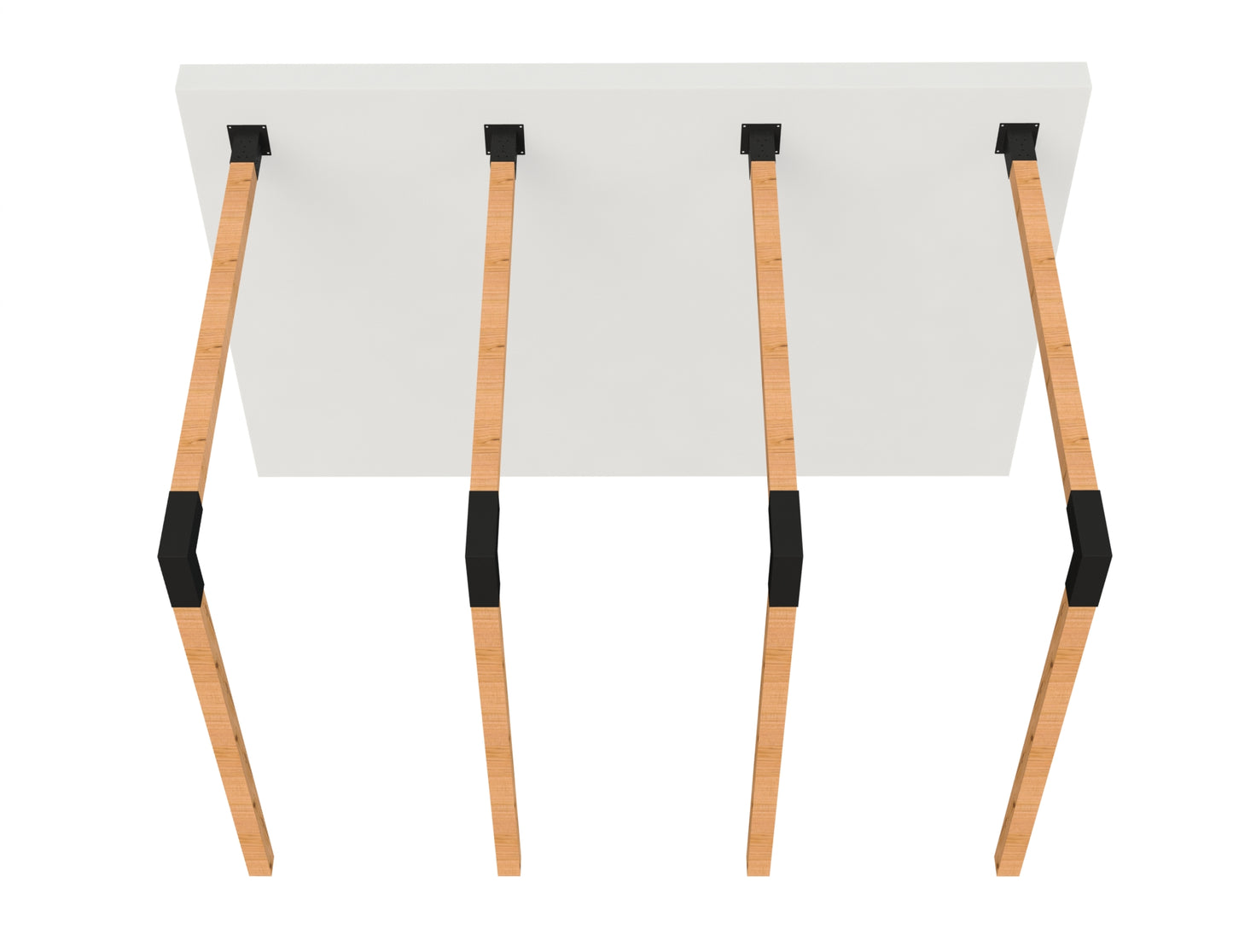

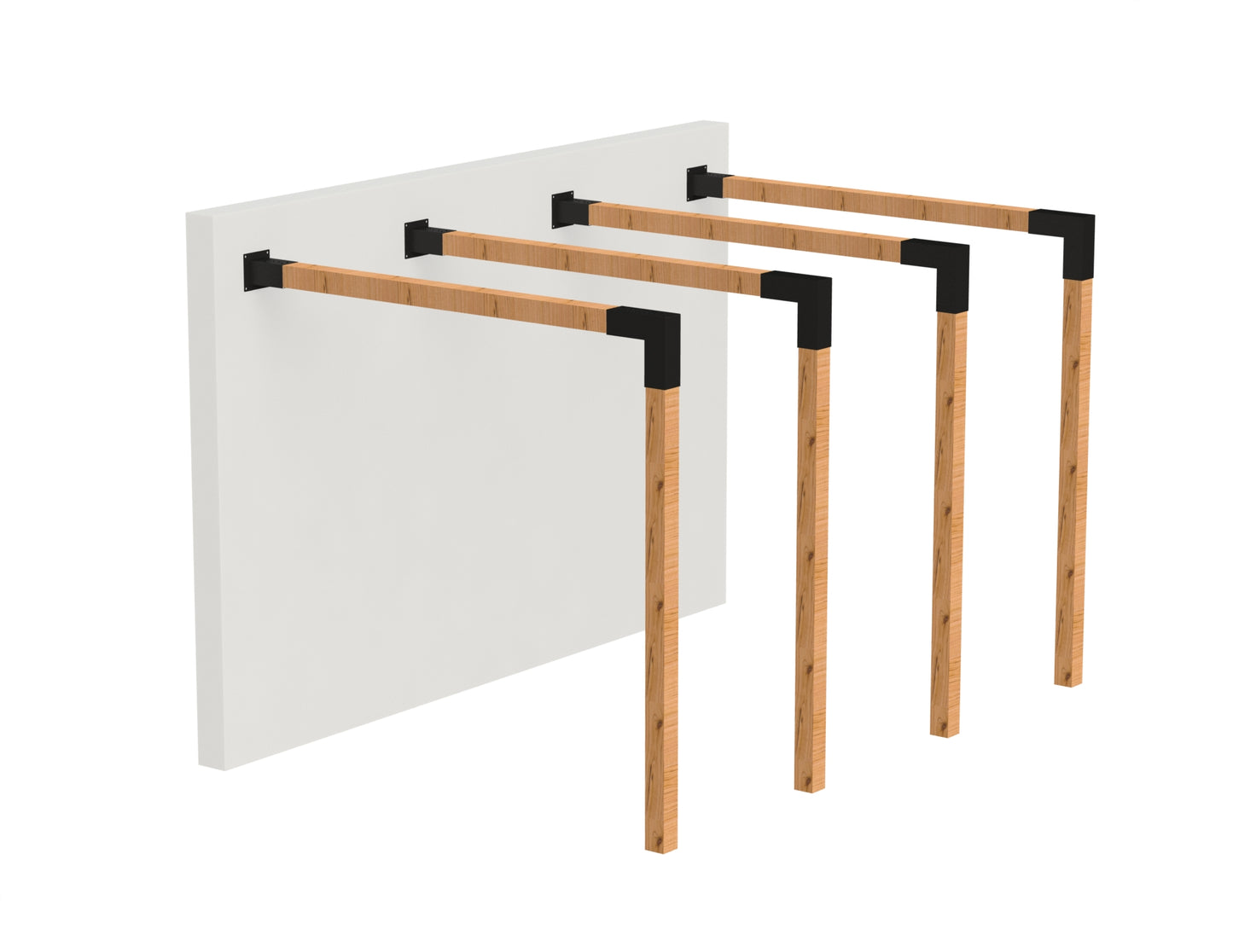

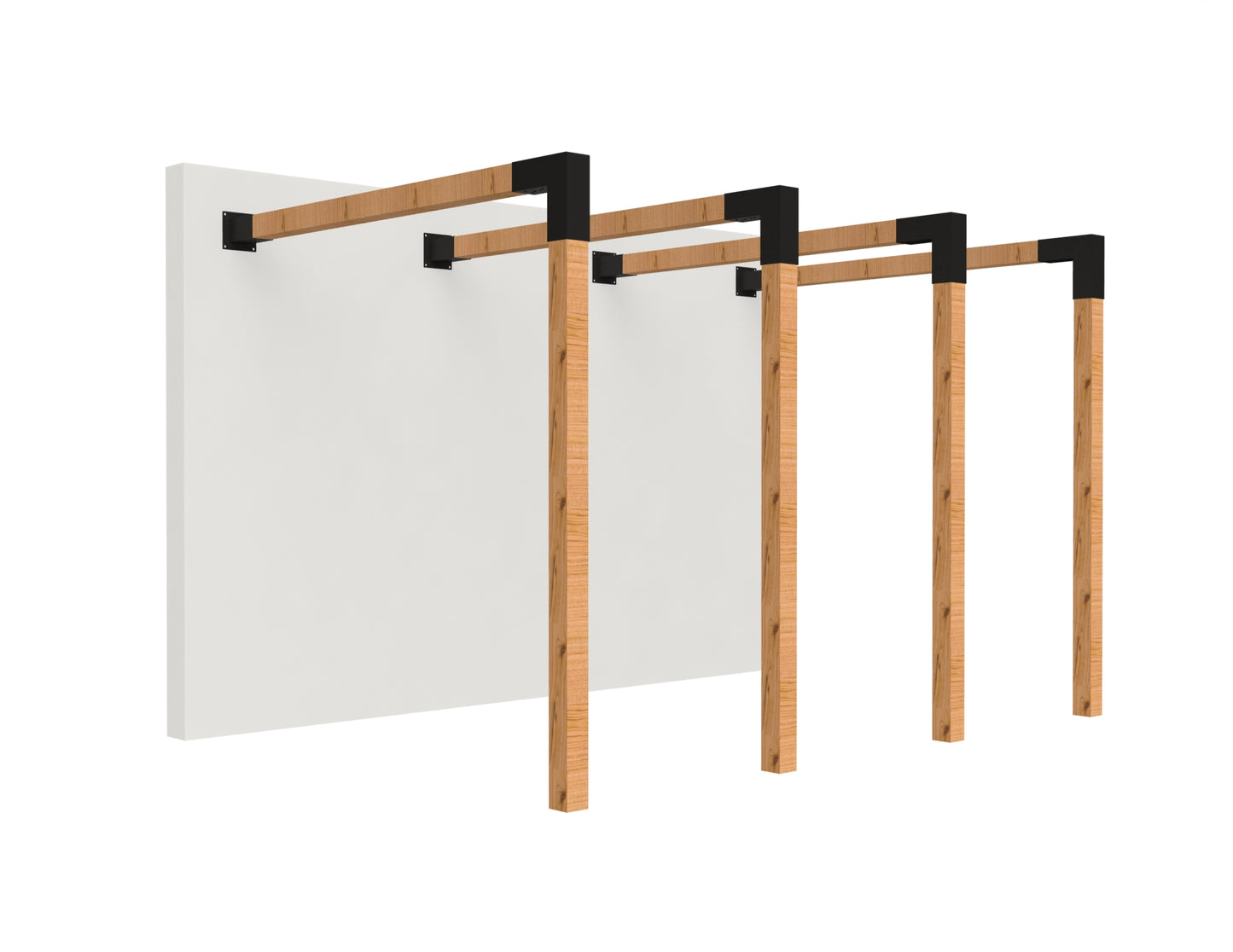

Effortlessly assemble and customise your timber Wall mounted Frame with 90x90 timber posts using our L-Brackets and wall mounting brackets.
Strong & Durable, Premium Quality Finish, Versatile and Easy to Assemble Modular Pergola System.
- FREE SHIPPING to anywhere in Australia
- IN STOCK, 2 business days for Dispatch
CLICK HERE - Explore Our Authorised Resellers & Display Locations
Product Details
Features & Inclusions
Brackets Precision Crafted for 90x90mm Timber Fit
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel
4 x L-Brackets for 90x90mm Timber Fit
4 x Wall Mounting Brackets for 90x90mm Timber Fit
64 x 12g/38mm Black Plated self tapper Fastening Screws to fasten your brackets securely to the timber.
Product Specs
Our brackets are designed for optimal fit with 90x90mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.
L-Bracket Measurements:
Arm Opening Designed for 90x90mm timber fit
Arm Opening (Interior): 92 x 92mm
Arm Opening (Exterior): 96 x 96mm
Arm Length: 180 mm
Steel Thickness: 2mm
Bracket Dimensions (L x W x H): 276 x 96 x 276mm
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Wall Mounting Bracket Measurements:
Arm Opening (Interior): 92 x 92mm
Arm Opening (Exterior): 96 x 96mm
Arm length: 180 mm
Steel Thickness: 2mm
Base dimensions: 156 x 156mm
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 10mm
Returns
We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.
Modaprax L-Bracket
The verstaile Modaprax Two Arm L-Bracket allows you to build a garden frame, extend your pergola frame or add a wall mounted feature for your space.
