Product Details
Features & Inclusions
Brackets Precision Crafted for 90x90mm Timber Fit (No Shaving)
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for slick quality finish
10-year limited warranty on steel brackets
Shade Sail Features
Synthetic high density polyethylene knitted fabric

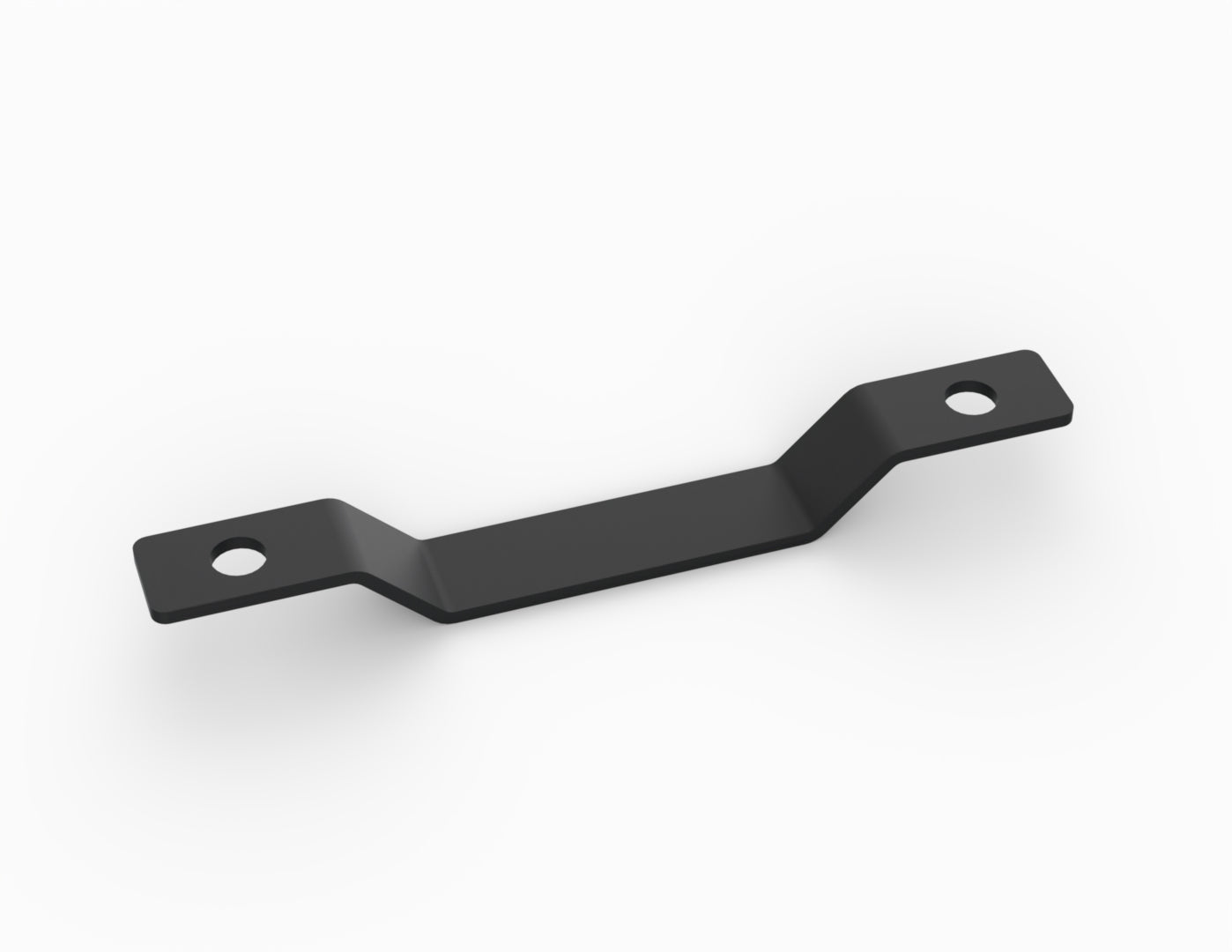

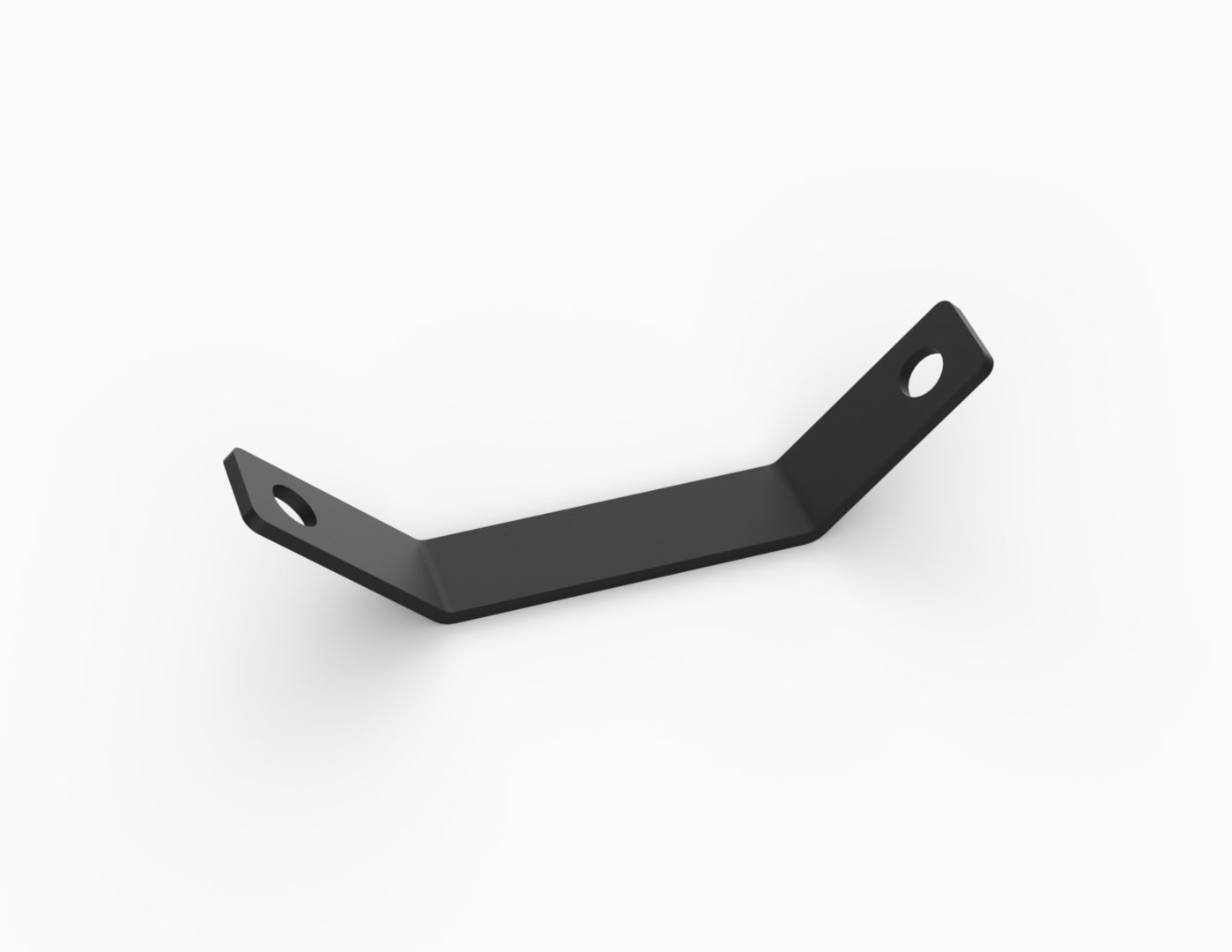

Tension straps with buckles to tighten shade sail to Pergola Frame

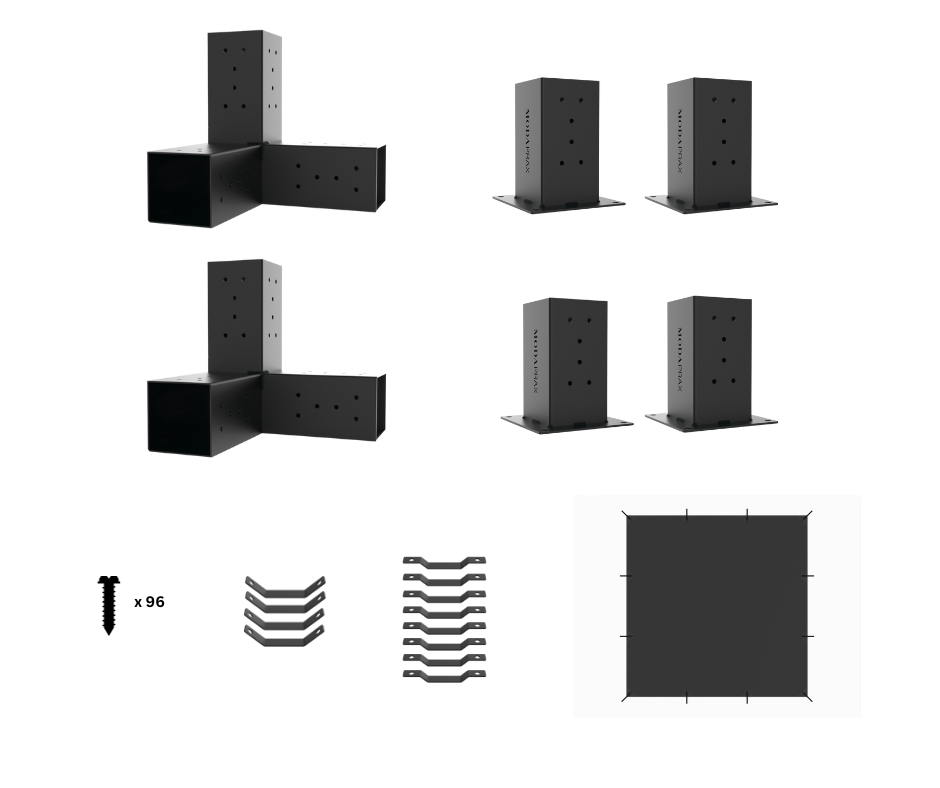

4 x Base Brackets to anchor timber posts securely to solid surface (e.g. concrete or decking).
2 x Corner Brackets to connect posts and create a sturdy frame.
1 x Shade Sail with several size options: 2.24x2.24m, 2.24x2.84m, 2.84x2.84m, 2.84x3.44m & 3.44x3.44m
Note: Shade Sail sizes designed to fit standard timber lengths available at your timber warehouse (e.g. 2.24x2.24m to fit 2.4x24m or 2.84x2.84m with 3x3m)
96 x 12g/38mm Black Plated Fastening Screws to securely fasten brackets and shade sail to timber.
Modaprax Tips
For instructions on how to install a Modaprax Pergola using these brackets, please access the Modaprax Instructions Guide here.

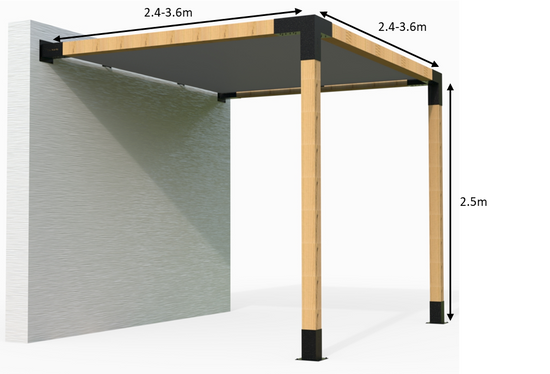

You can customize your mounted pergola with Shade Sail up to 2.5m in height and between 2.4m to 3.6m in length.
N.B. Allow for approx. 16cm additional span for the timber relative to shade sail. For example, if you choose a 2.84x2.84m shade sail, timber should be 3x3m. This gives you a 6-8cm spacing on each side after stretching the shade sail with the tension straps.
Timber Required
Our brackets are designed to seamlessly fit 90x90 timber - available in a premium dressed finish. Personalise your pergola by selecting from a variety of timber styles and lengths at your local timber warehouse.
Product Specs
Our brackets are designed for optimal fit with 90x90mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.
Bracket Features:
Arm Opening Designed for 90x90mm timber fit
Arm Opening (Interior): 93 x 93mm
Arm Opening (Exterior): 97 x 97mm
Arm length: 180mm
Steel Thickness: 2mm Steel
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 10mm
Shade Sail Dimensions:
Synthetic high density polyethylene knitted fabric

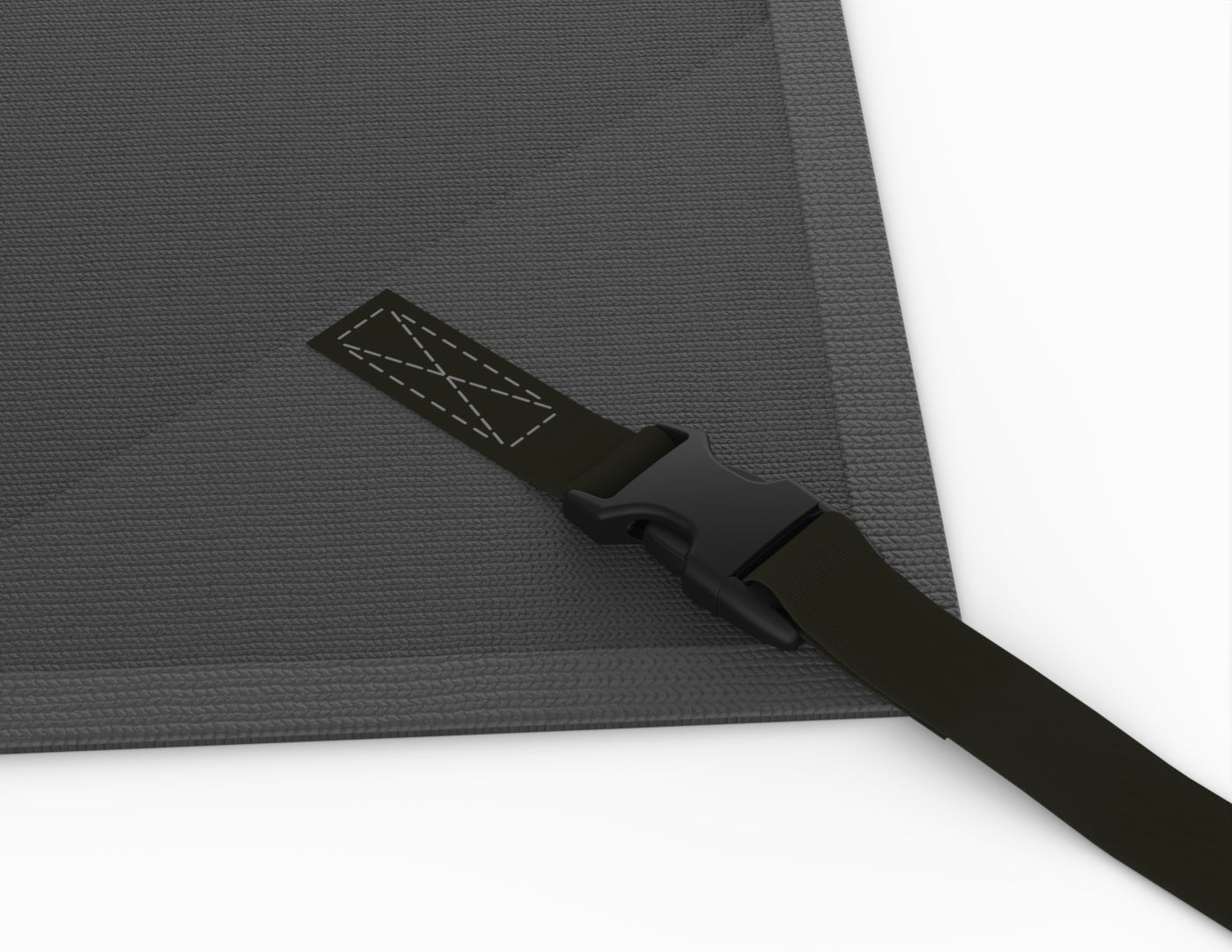

Tension straps with buckles to tighten shade sail to Pergola Frame
Easy to connect and take down
Note: The polyethylene knitted fabric of the shade sail may seem smaller at first, but it's crafted for a snug fit, accommodating stretch over time for lasting flexibility in your pergola.
A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.
Returns
We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.

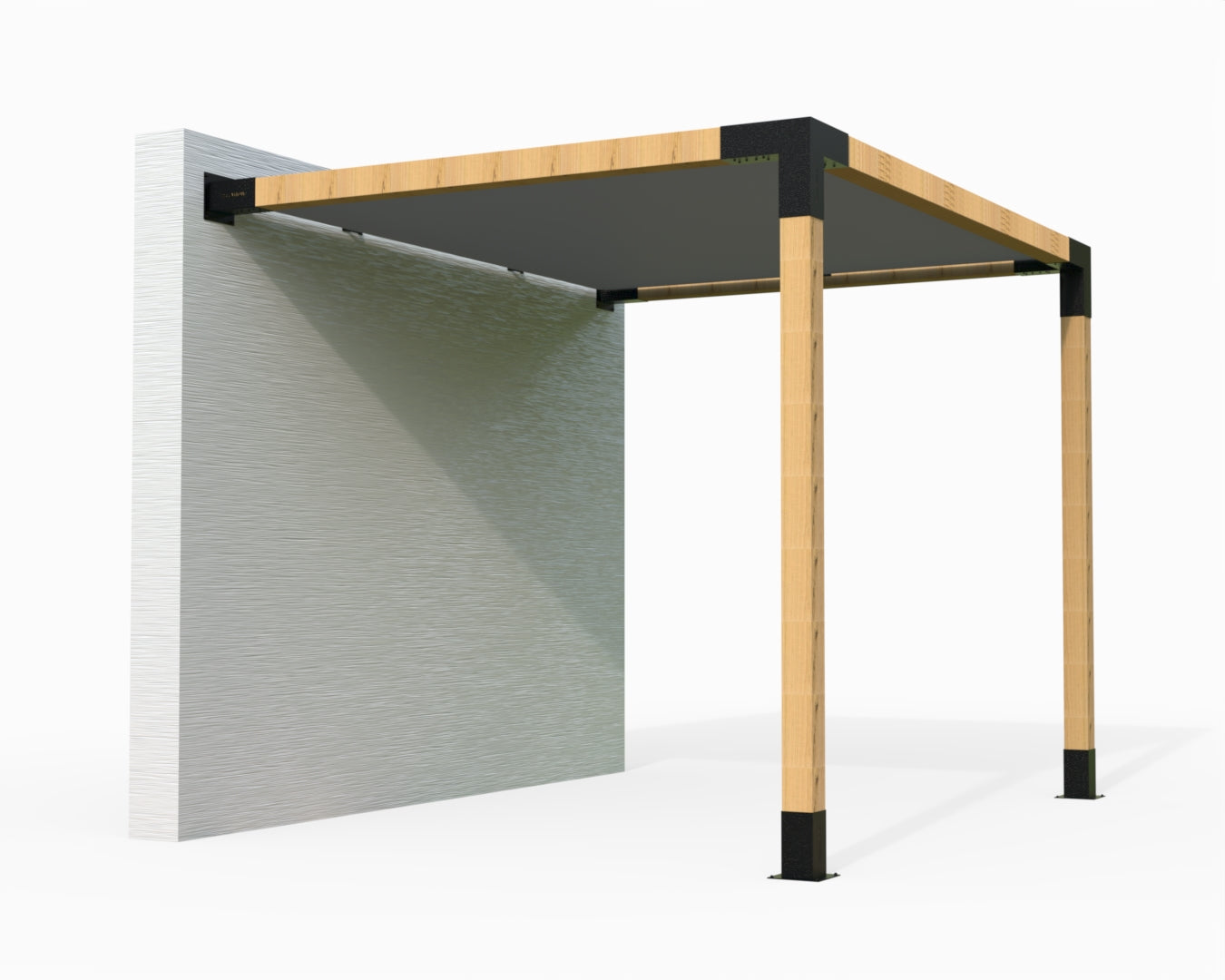

Modaprax Wall to Base Pergola Kit with Shade Sail
The shade sail is a simple way to provide shade coverage and comes in three sizes: 3x3m, 3x3.5m and 3.5x3.5m.
The kit comes with four base brackets which allow you to anchor your timber posts to a solid surface (e.g. concrete, decking or stone). The two three arm corner brackets connect the remaining posts of your pergola to complete the core frame of your outdoor structure.
