Angled Pergola Kit for 90x90 Timber Posts
Timber not included
FREE SHIPPING
Effortlessly assemble a stylish timber pergola with a five-degree slope using our specially designed brackets, compatible with 90x90 timber posts. Includes:
- Left & Right Side Upward Slope Corner Brackets
- Left & Right Side Downward Slope Corner Bracket
- 4 x Base Brackets
- Black Plated Fastening Screws
***Available for Dispatch 8th of November - Please contact us to enquire or preorder
Strong & Durable, Premium Quality Finish, Versatile and Easy to Assemble Modular Pergola System.
- FREE SHIPPING to anywhere in Australia
-
Available 8th of November, Preorder now
Give us a call (1300 093 808) or send us an email (info@modaprax.com.au) if you need help choosing the right timber sizes. Or reach out to us via our Contact Us page.
Product Details
Features & Inclusions
Key Features
Brackets Precision Crafted for 90x90mm Timber Fit (No Shaving)
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel

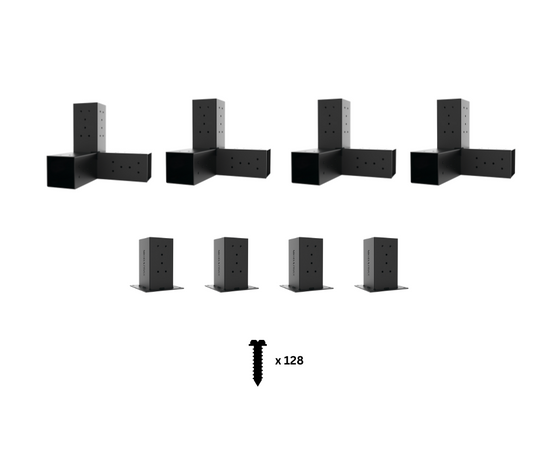

Inclusions
4 x Base Brackets to anchor timber posts securely to solid surface (e.g. concrete or decking).
1 x Right Side & 1 x Left Side Upward Slope Corner Brackets
1 x Right Side & 1 x Left Side Downward Slope Corner Brackets
128 x 12g/38mm Black Coated Pan Head Self Tapping Fastening Screws to fasten your brackets securely to the timber.
Modaprax Tips & Instructions
For instructions on how to install a Modaprax Pergola using these brackets, please access the Modaprax Instructions Guide here.

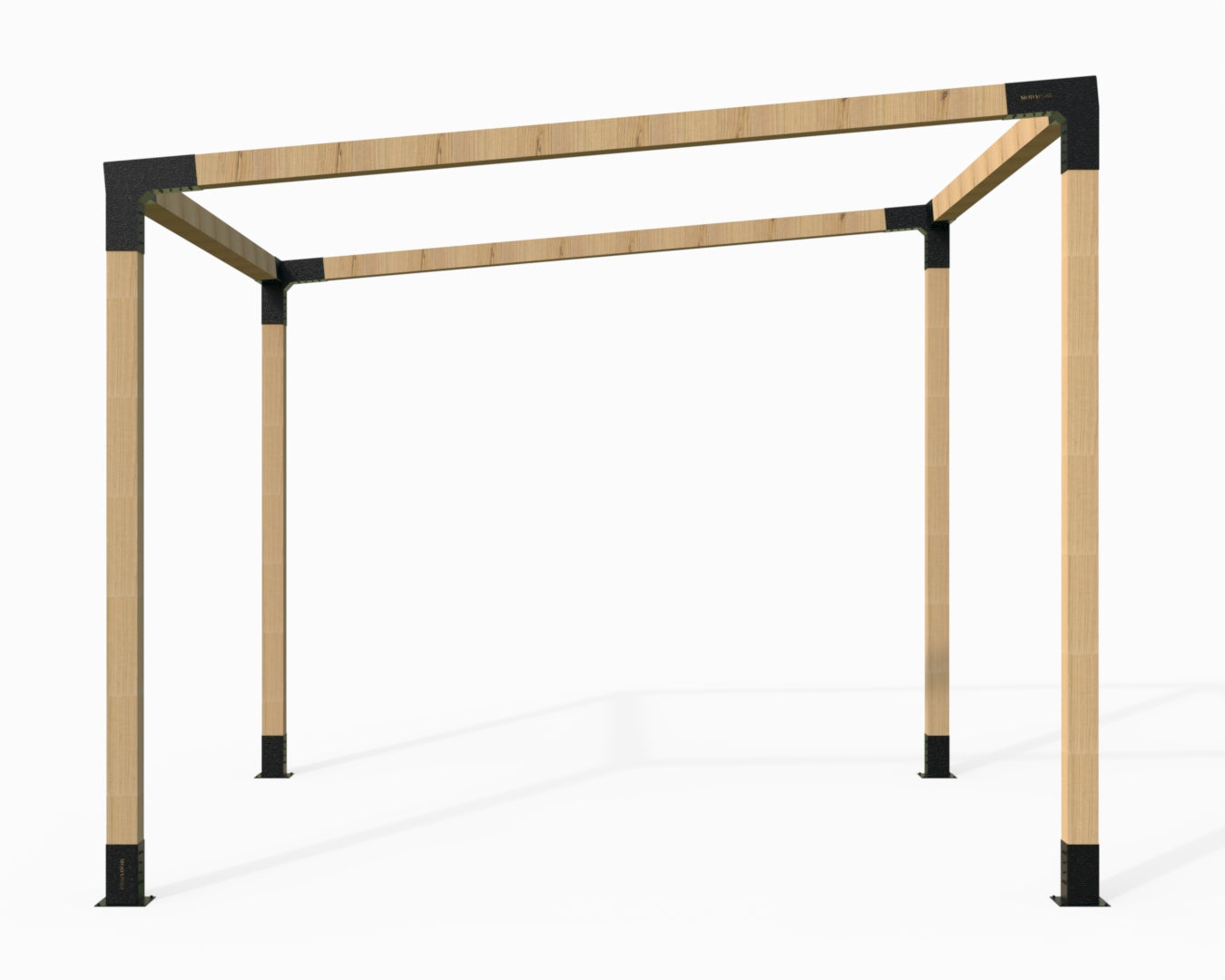

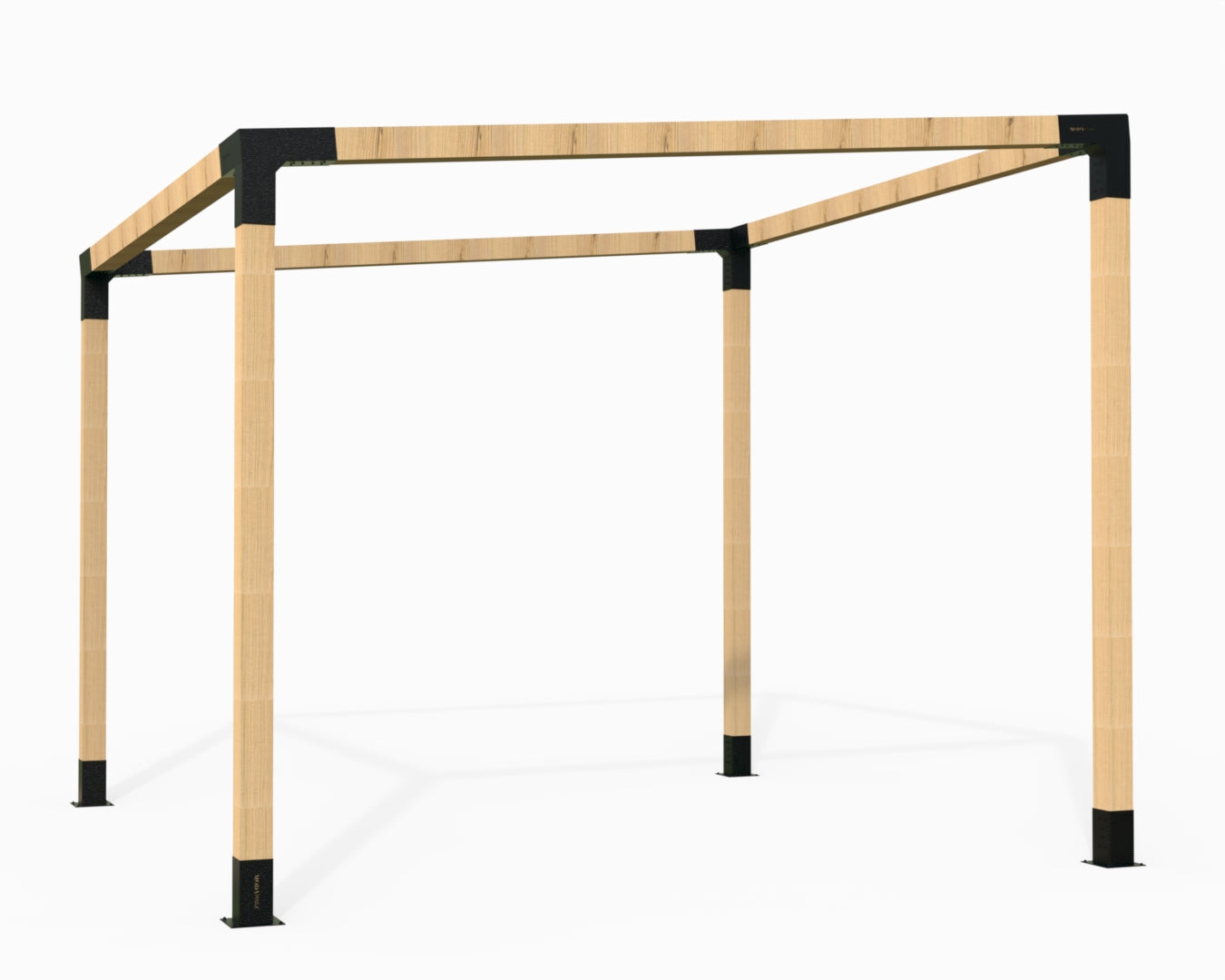

You can customize your pergola up to 2.5m in height and up to 3.6m spans. For an angled pergola, H1 and H2 will be different. You can estimate H2 based on H1 and the span of the sloped post using the following formula:
H2 = H1 - (Span x 0.087)
So, if you are using a 2.5m post for H1 and the sloped post is 3m, then the post length needed for H2 is:
H2 = 2.5m - (0.087 x 3m) = 2.5m - 0.261m = 2.239m
Product Specs
Our brackets are designed for optimal fit with 90x90mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.
Bracket Features:
Arm Opening Designed for 90x90mm timber fit
Arm Opening (Interior): 93 x 93mm
Arm Opening (Exterior): 97 x 97mm
Arm length: 180mm
Steel Thickness: 2mm Steel
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 10mm
A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.
Returns
We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.

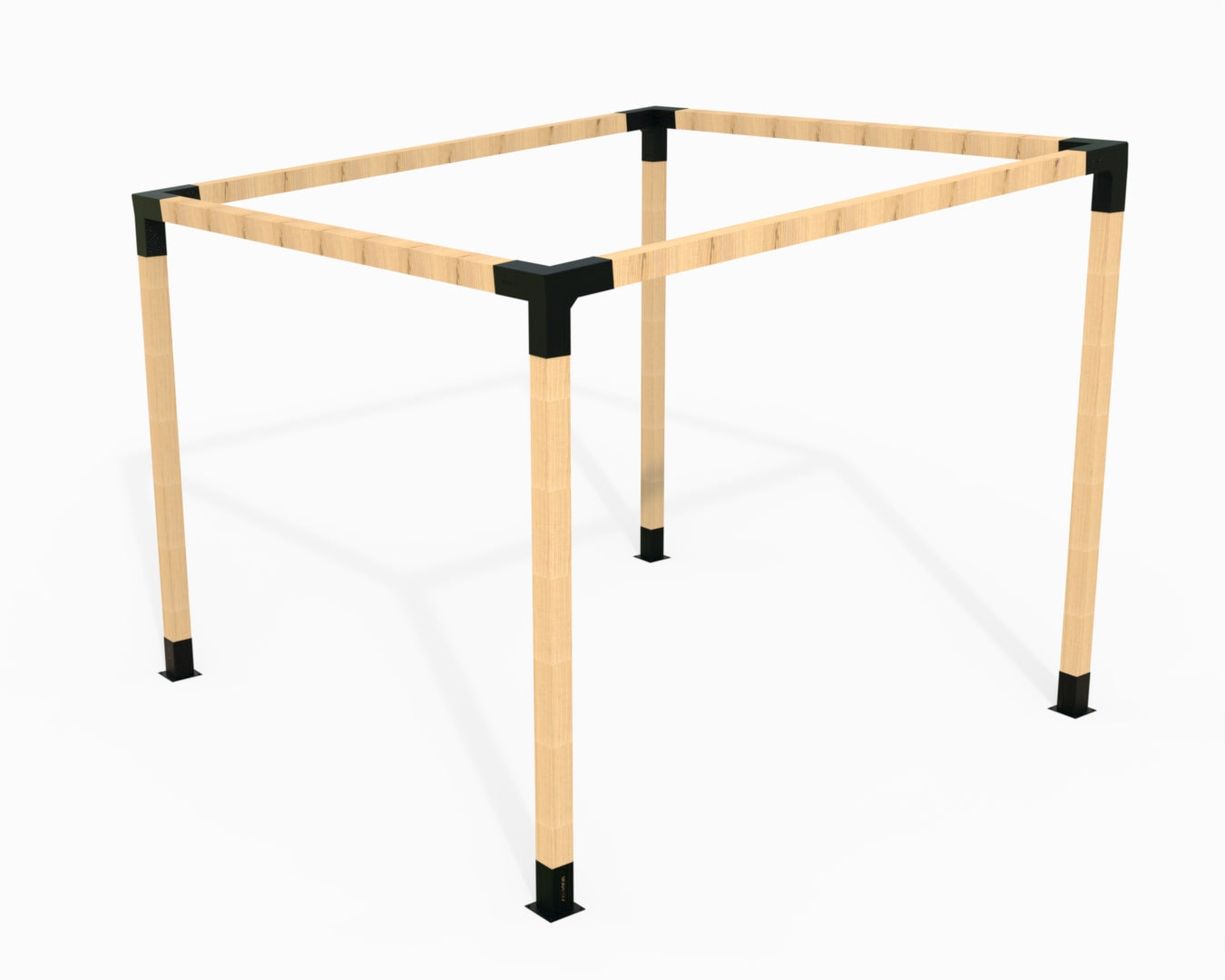

Modaprax Freestanding Pergola
The 90x90 Freestanding Modaprax Pergola Kit allows you to build your outdoor structure as part of our easy to assemble modular system.
The kit comes with four base brackets which allow you to anchor your timber posts to a solid surface (e.g. concrete, decking or stone). The three arm corner bracket connects the remaining posts of your pergola to create the core frame of your outdoor structure.
