Product Details
Features & Inclusions
Brackets Precision Crafted for 90x90mm Timber Fit (No Shaving)
Weather-resistant coating
Laser-cut, folded and internally welded for slick quality finish
10-year limited warranty on steel brackets
4 x Base Brackets to anchor timber posts securely to solid surface (e.g. concrete or decking).
4 x Corner Brackets to connect posts and create a sturdy frame.
16 x Rafter Brackets to install your choice of eight 90x45mm or 90x35mm timber beams to your pergola
176 x 12g/38mm Black Plated Fastening Screws to securely fasten brackets to timber.
Modaprax Tips & Instructions
For instructions on how to install a Modaprax Pergola, please access the Modaprax Instructions Guide here.
You can customize your timber pergola with rafters up to 2.5m in height. If installing 8 rafters, we recommend a maximum span of 3m (allowing 298.3mm spacing between rafter beams).
For pergolas frames with 3-3.6m spans, you can order more Rafter Brackets here.
To estimate space between rafter brackets
Step 1: Measure exact span of your timber frame.
Step 2: Count the number of spaces between rafters (no. of rafters +1).
Step 3: Estimate the space between each rafter fastening point = Span/(no. of rafters +1)
Timber Required
Our brackets are designed to seamlessly fit 90x90 - available in a premium dressed finish. Personalise your pergola by selecting from a variety of timber styles and lengths at your local timber warehouse.
Assuming an 8 Rafter Timber Pergola with 2.4-3m spans, you will need to order:
Product Specs
Our brackets are designed for optimal fit with 90x90mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.
Bracket Features:
Arm Opening Designed for 90x90mm timber fit
Arm Opening (Interior): 93 x 93mm
Arm Opening (Exterior): 97 x 97mm
Arm length: 180mm
Steel Thickness: 2mm Steel
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 10mm
Specification of Rafter Bracket:
Designed for your choice of 90x35mm and 90x45mm timber fit
Arm Opening (Interior): 92 x 37/47mm
Arm Opening (Exterior): 96 x 41/51mm
Steel Thickness: 2mm Steel
Bracket dimensions (L x W x H): 140mm x 42mm x 97mm
Three Fastening Holes: 7 mm
A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.
Returns
We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.

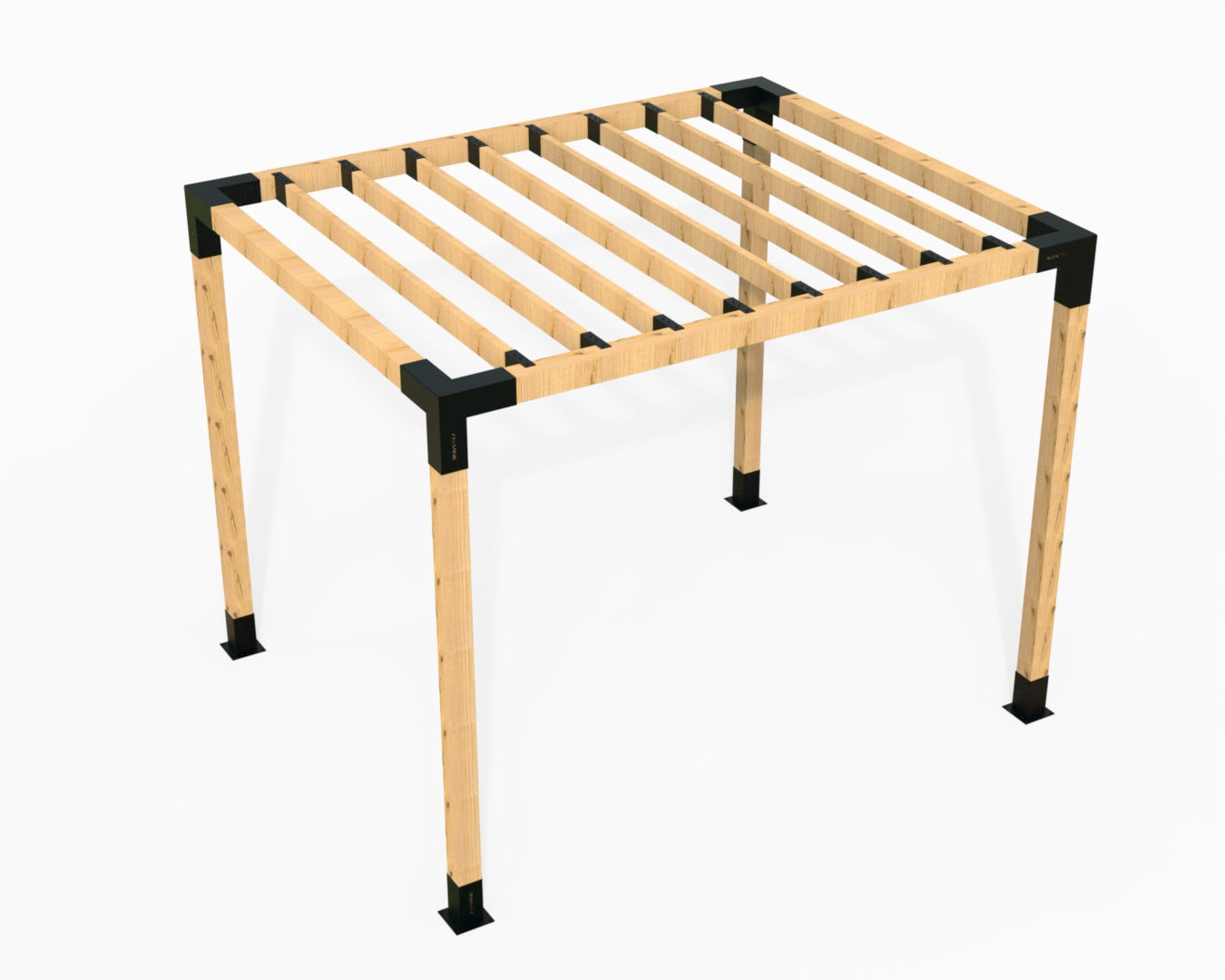

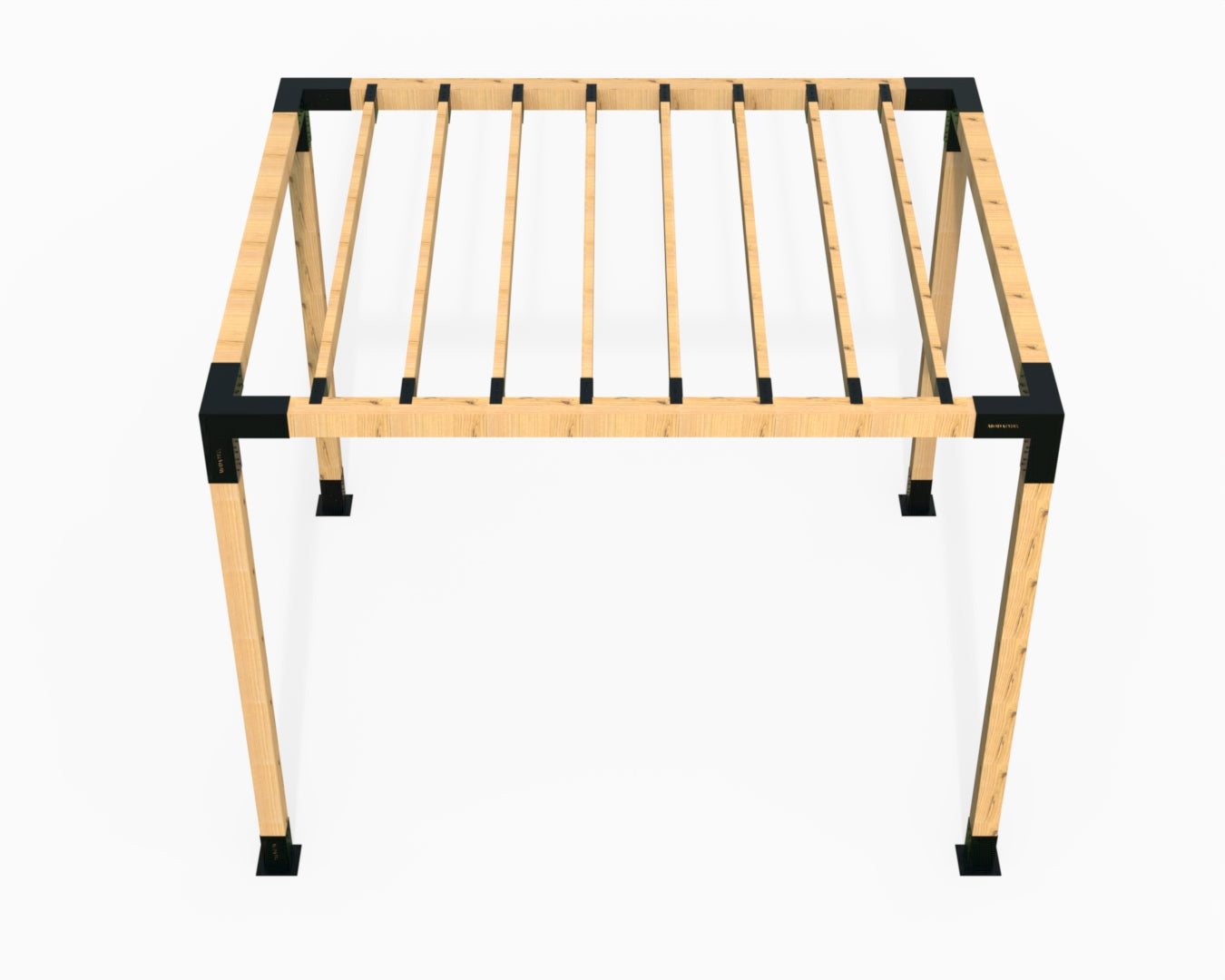

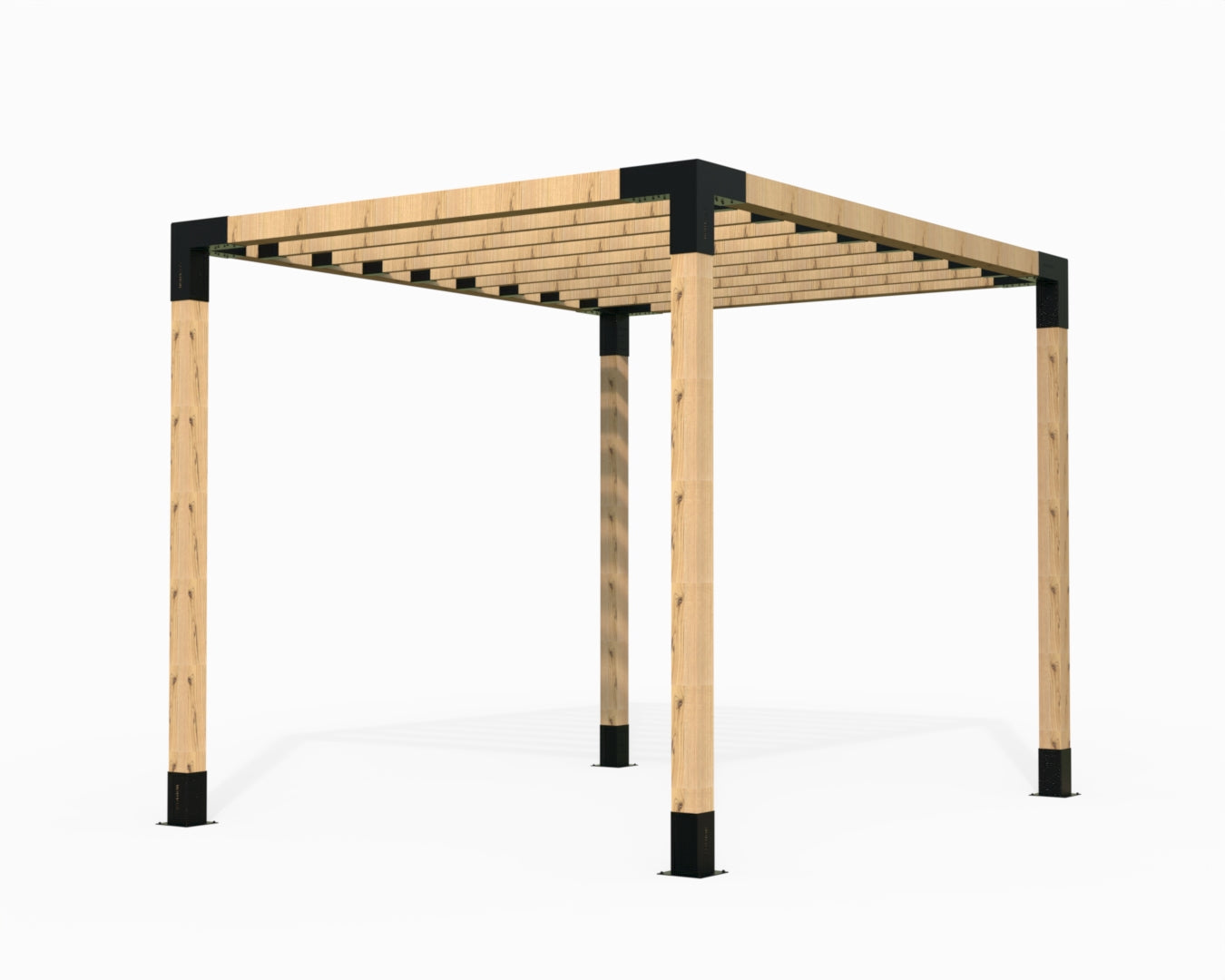

Modaprax Pergola Kit with Rafters
The rafter brackets provide an easy solution to install your choice of 90x45 or 90x35 rafter beams to your pergola and add some additional style to your outdoor structure.
The kit comes with four base brackets which allow you to anchor your timber posts to a solid surface (e.g. concrete, decking or stone). The three arm corner brackets connect the remaining posts of your pergola to complete the frame.
