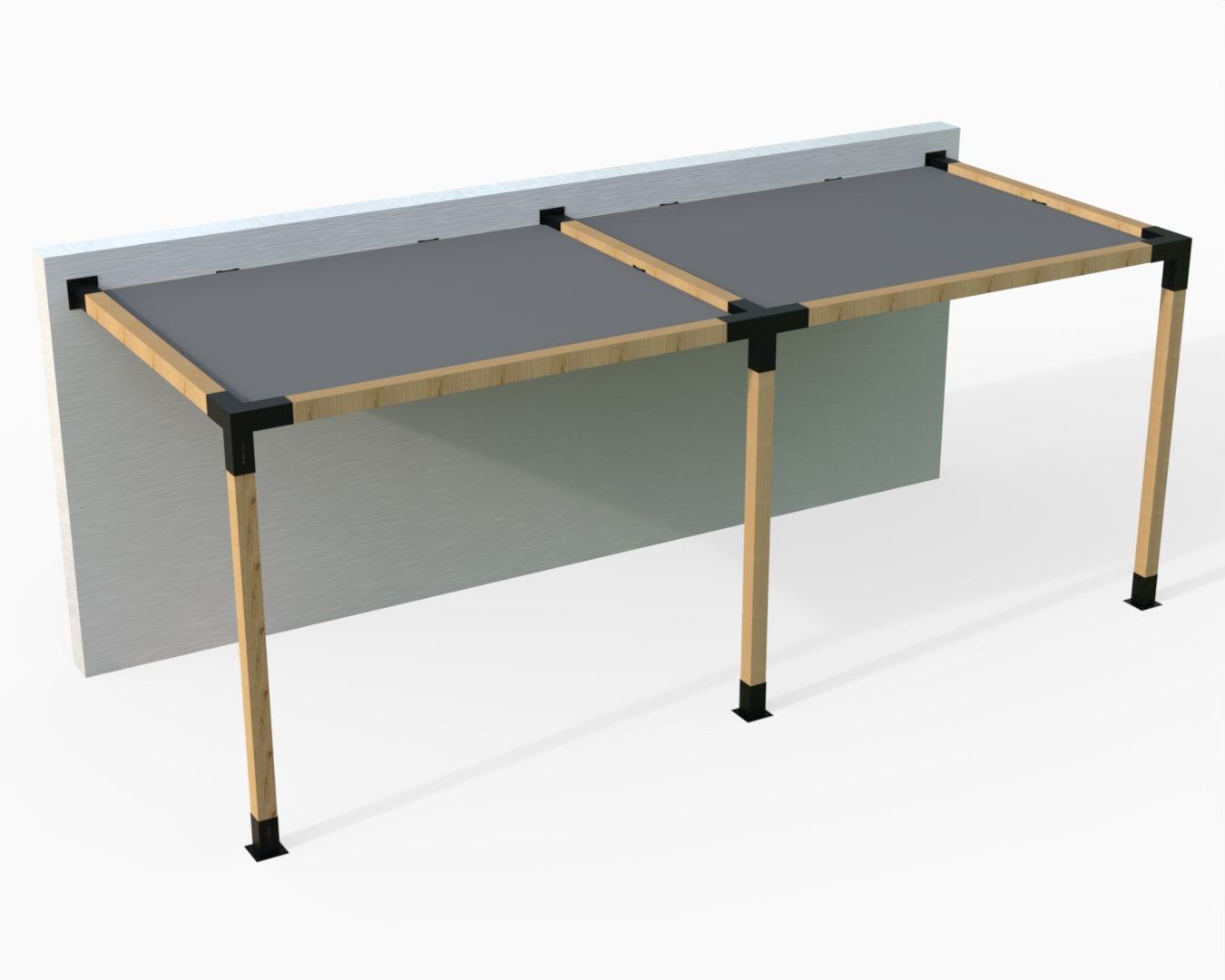

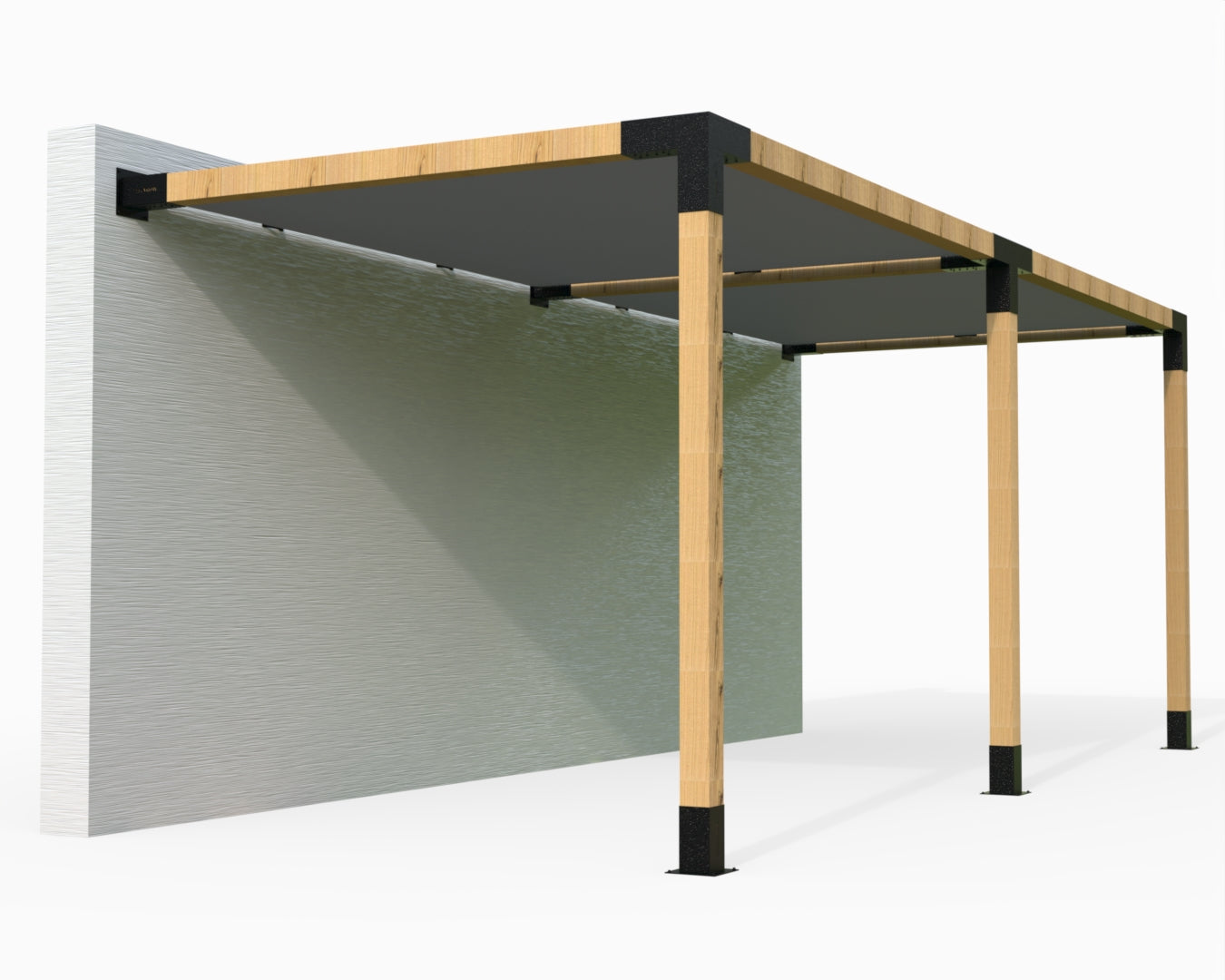

Double Wall Mounted Pergola Kit with Shade Sail for 90x90 Timber Posts

Brackets Precision Crafted for 90x90mm Timber Fit (No Shaving)
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel

Shade Sail Features
Synthetic high density polyethylene knitted fabric

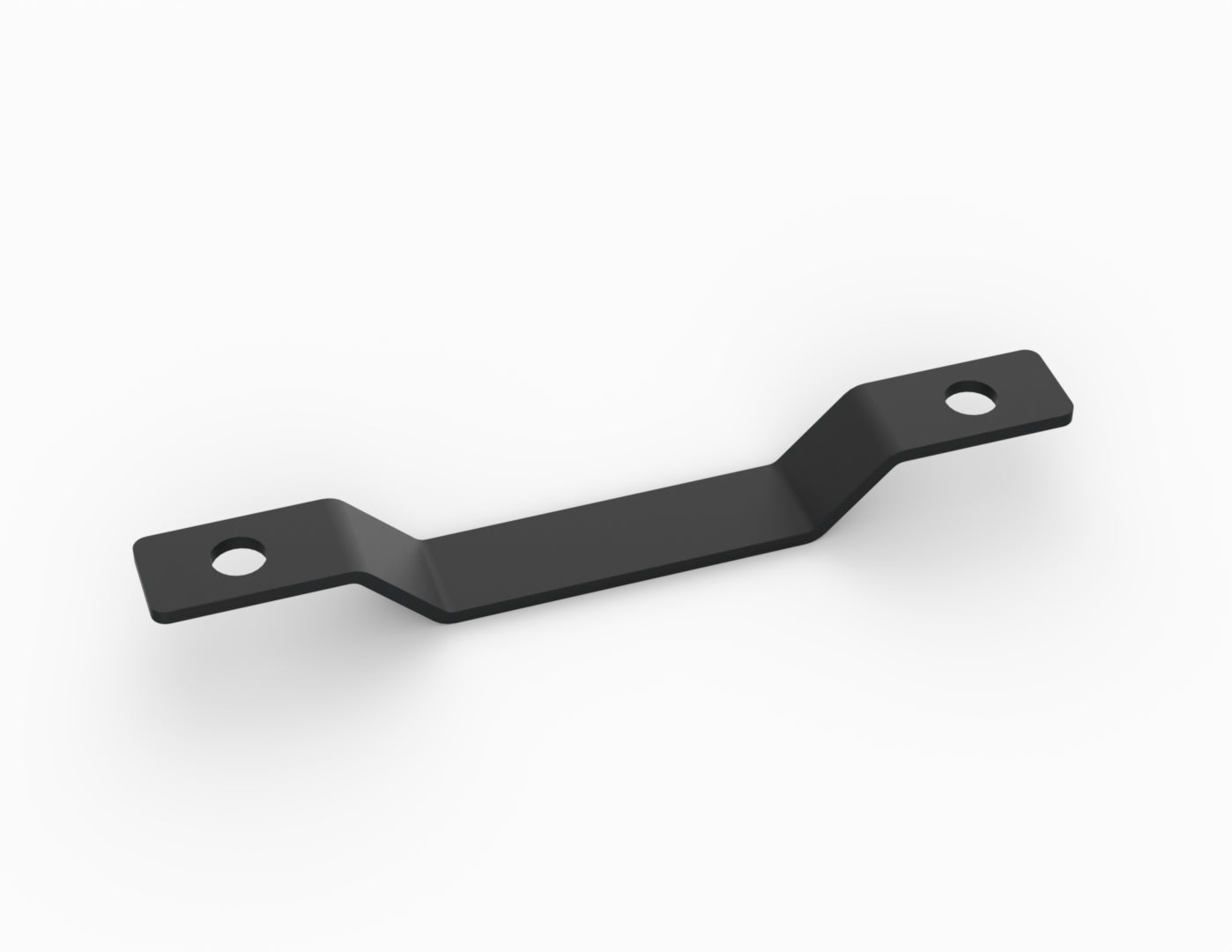

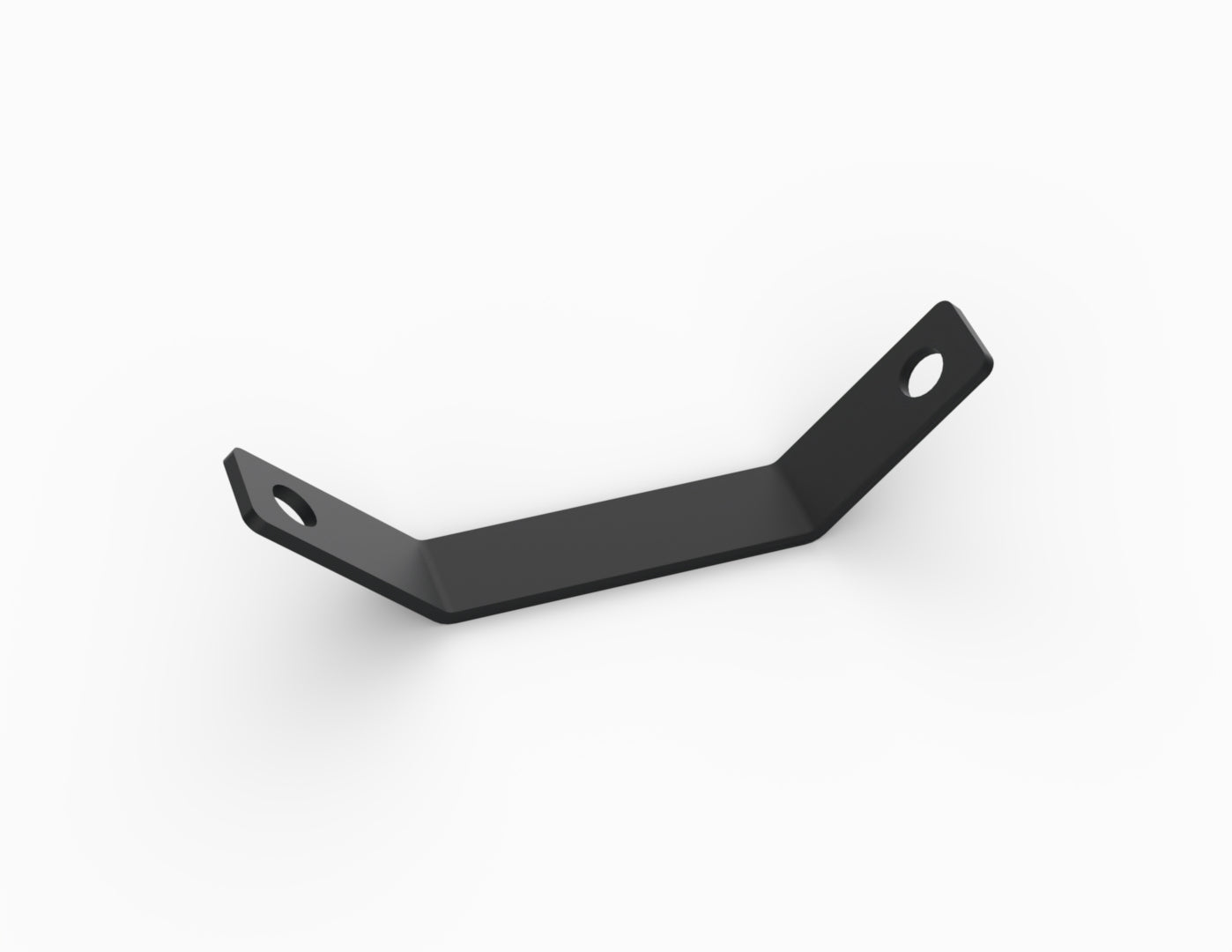

Tension straps with buckles to tighten shade sail to Pergola Frame

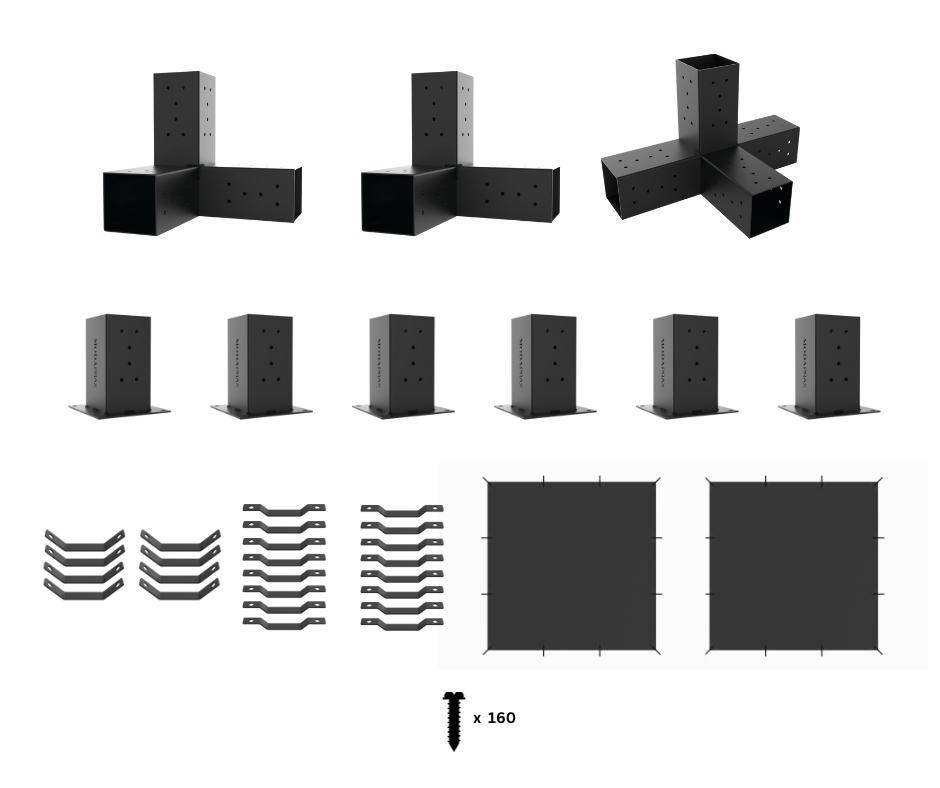

6 x Base Brackets: 3 Brackets to mount your pergola frame to a wall and 3 to anchor timber posts securely to a solid surface (e.g. concrete or decking).

2 x Corner Brackets to connect posts and create a sturdy frame.

1 x Extension Bracket to connect posts and extend the length of your pergola.

2 x Shade Sails with several size options; 2.24x2.24m, 2.24x2.84m, 2.84x2.84m, 2.84x3.44m & 3.44x3.44m

Note: Shade Sail sizes designed to fit standard timber lengths available at your timber warehouse (e.g. 2.24x2.24m to fit 2.4x24m or 2.84x2.84m with 3x3m)

160 x 12g/38mm Black Plated Fastening Screws to securely fasten brackets and shade sail to timber.

For instructions on how to install a Modaprax Pergola using these brackets, please access the Modaprax Instructions Guide here.

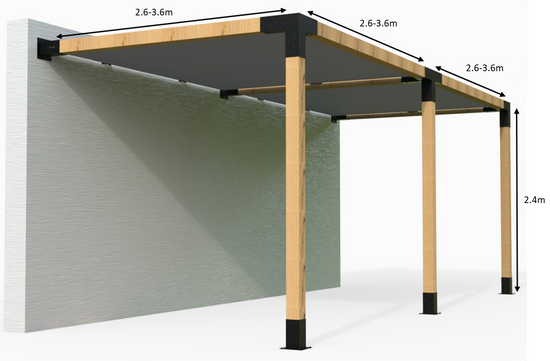

You can customize your extended mounted pergola up to 2.5m in height and spans between 2.4m to 3.6m in length.

N.B. Allow for approx. 16cm additional span for the timber relative to shade sail. For example, if you choose a 2.84x2.84m shade sail, timber should be 3x3m. This gives you a 6-8cm spacing on each side after stretching the shade sail with the tension straps.

Our brackets are designed to seamlessly fit 90x90 timber - available in a premium dressed finish. Personalise your pergola by selecting from a variety of timber styles and lengths at your local timber warehouse.

Our brackets are designed for optimal fit with 90x90mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.

Bracket Features:
Arm Opening Designed for 90x90mm timber fit
Arm Opening (Interior): 93 x 93mm
Arm Opening (Exterior): 97 x 97mm
Arm length: 180mm
Steel Thickness: 2mm Steel
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 10mm

Shade Sail Features
Synthetic high density polyethylene knitted fabric

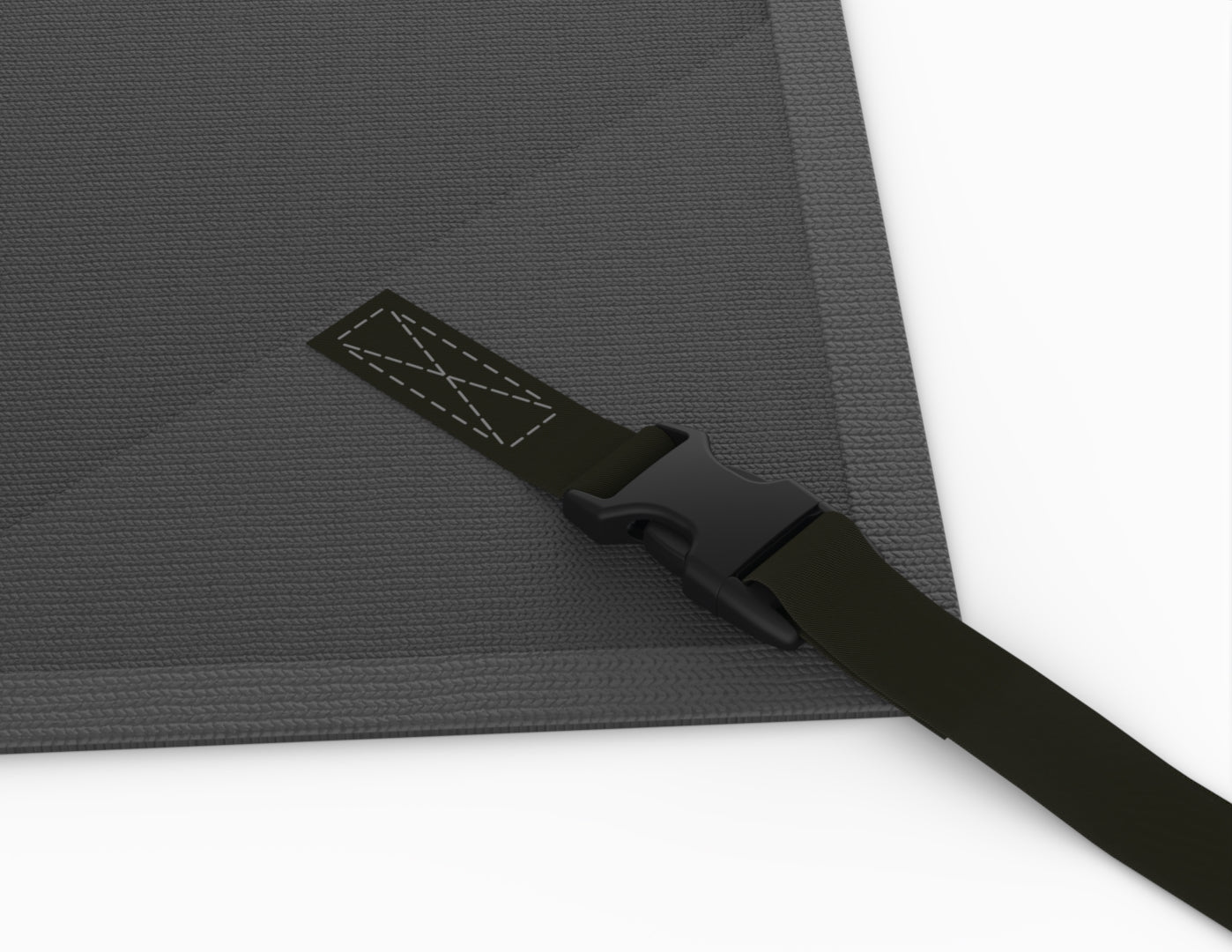

Tension straps with buckles to tighten shade sail to Pergola Frame
Easy to connect and take down

Note: The polyethylene knitted fabric of the shade sail may seem smaller at first, but it's crafted for a snug fit, accommodating stretch over time for lasting flexibility in your pergola.

A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.
