Modaprax

Pergola Kit for 140x140 Timber Posts with 45 Degree Support Brackets for 90x90 Timber

Timber not included

Regular price $1,269.00 AUD
Regular price $1,469.00 AUD Sale price $1,269.00 AUD
Sale Sold out
Tax included.

FREE SHIPPING

Easy to assemble modular solution for building and customising your premium timber pergola with 140x140 timber posts.

The support brackets make it easy to install 90x90 timber support posts to reinforce your timber frame.

  • FREE SHIPPING to anywhere in Australia
  • IN STOCK, 2 business days for Dispatch!
Give us a call (1300 093 808) or send us an email (info@modaprax.com.au) if you need help choosing the right timber sizes. Or reach out to us via our Contact Us page.

Product Details

Features & Inclusions

Brackets Precision Crafted for 140x140mm Timber Fit (No Shaving)
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel

4 x Base Brackets to anchor 140x140mm timber posts securely to solid surface (e.g. concrete or decking).

4 x Corner Brackets to connect 140x140mm posts and create a sturdy frame.

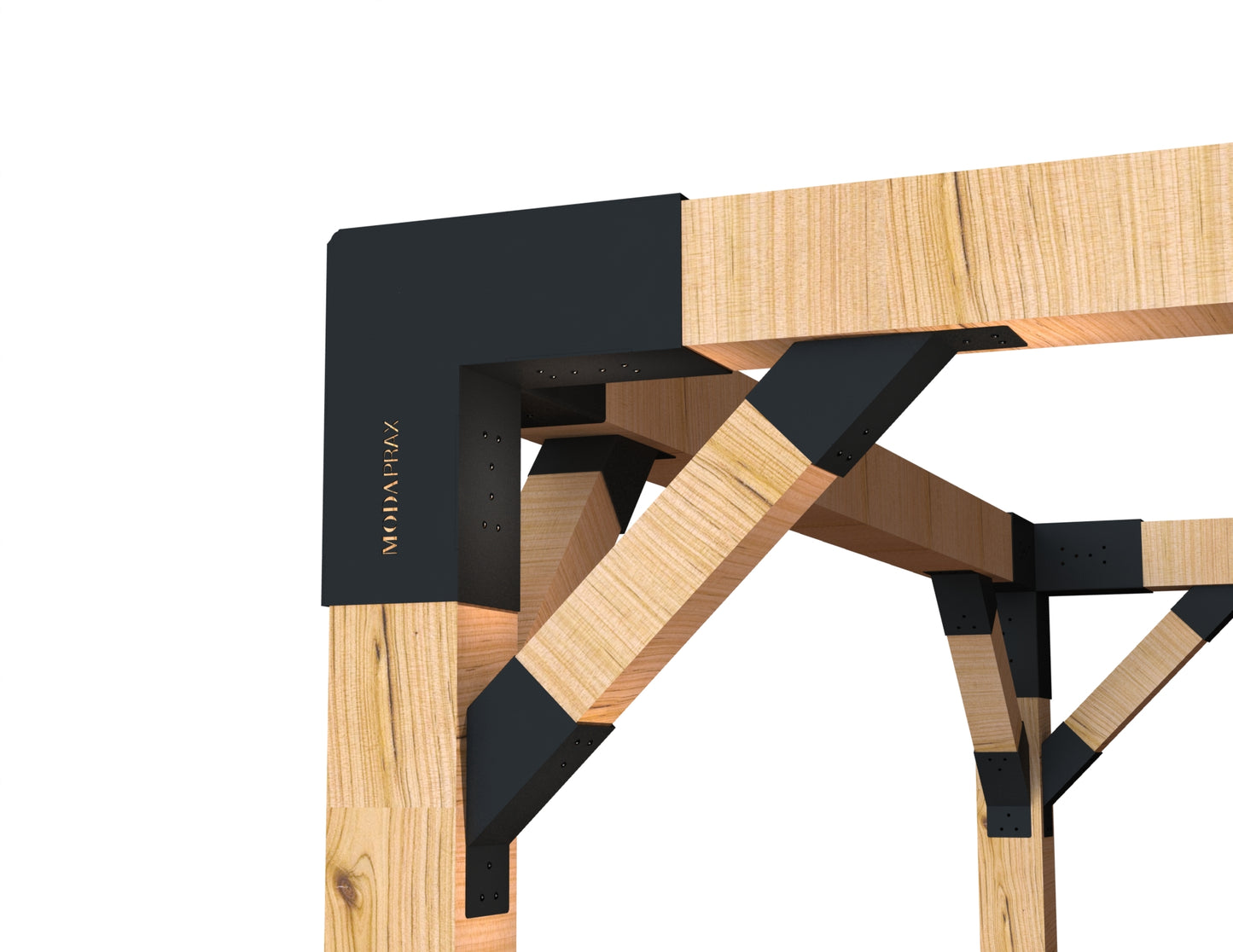

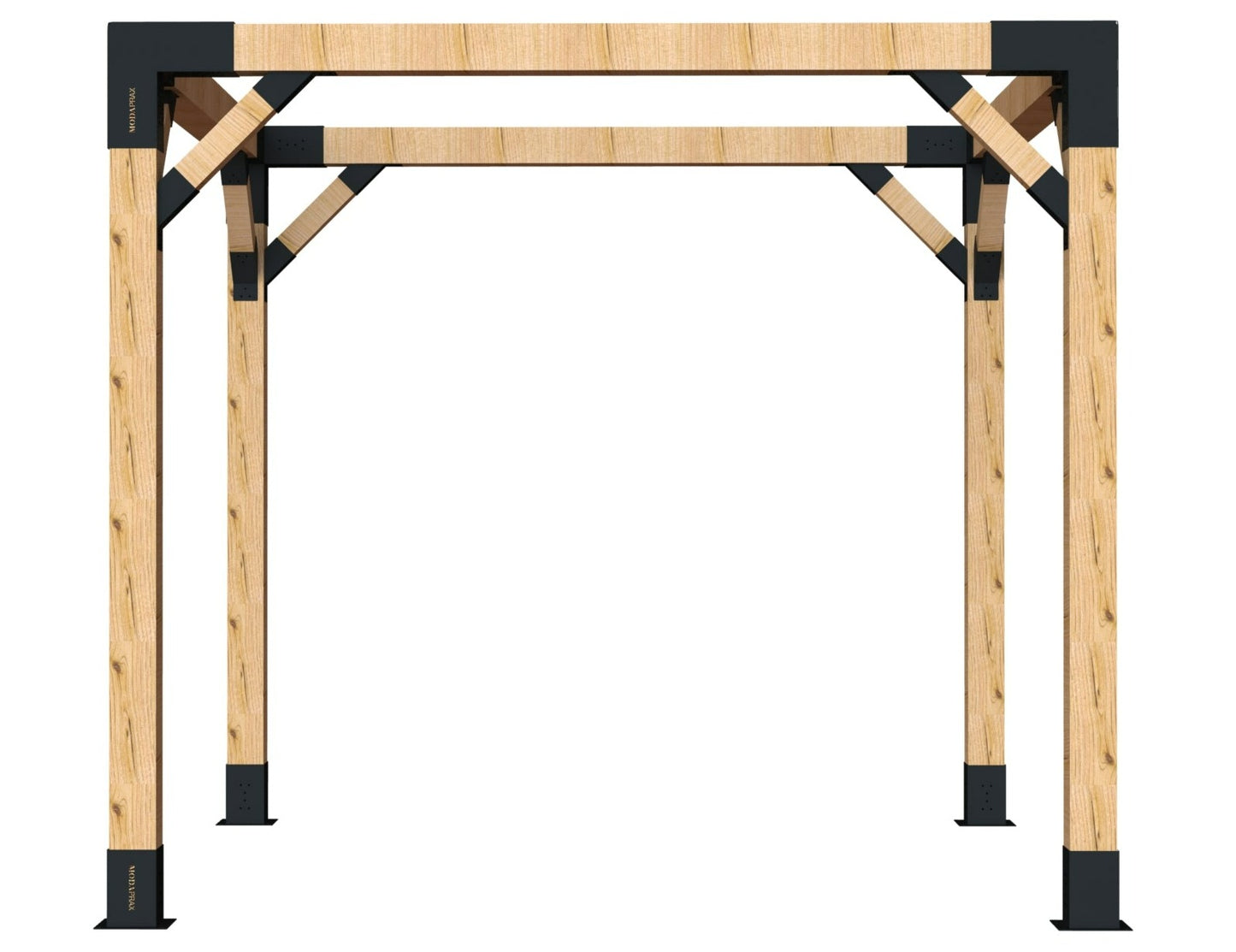

16 x 45Degree Support Brackets to install eight 90x90mm supporting timber posts to your pergola

224 x 12g/38mm Black Plated Fastening Screws to securely fasten brackets to timber.

A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.

Modaprax Tips

For instructions on how to install a Modaprax Pergola using these brackets, please access the Modaprax Instructions Guide here.

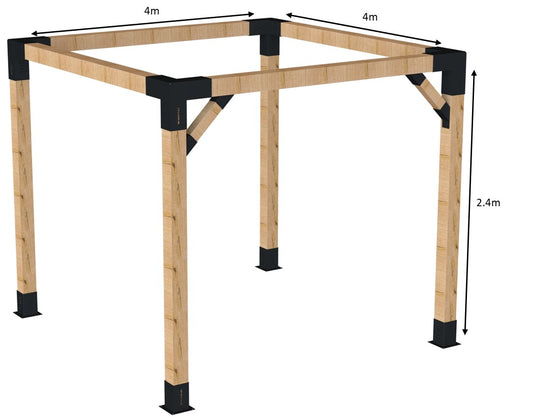

You can customize your freestanding pergola with spans up to 4m in length. The most common height for a Modaprax Pergola is 2.5m.

files/TipsforModaprax140x140PergolawithsupportBrackets_061e735b-ff1b-466d-8435-c65ab39718f6.jpg

Timber Required

Our brackets are designed to seamlessly fit 140x140 and 90x90 timber - These sizes were chosen given their availability in a premium dressed finish. Personalise your pergola by selecting from a variety of timber styles and lengths at your local timber warehouse.

files/RequiredtimberforModaprax140x140Pergolawith45degreesupports.jpg

Product Specs

Our brackets are designed for optimal fit with 140x140mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.

Bracket Features:
Arm Opening Designed for 140x140mm timber fit
Arm Opening (Interior): 143 x 143mm
Arm Opening (Exterior): 149 x 149mm
Arm length: 230mm
Steel Thickness: 3mm Steel
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 12mm

Specifications of 45 Degree Support Brackets:
Designed for 90 x 90mm timber fit
Arm Opening (Interior): 92 x 92mm
Arm Opening (Exterior): 96 x 96mm
Steel Thickness: 2mm
Bracket dimensions (L x W x H): 249 x 96 x 161mm
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm

A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.

Returns

We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.

Modaprax Freestanding Pergola

The 90x90 Freestanding Modaprax Pergola Kit allows you to build your outdoor structure as part of our easy to assemble modular system.

The kit comes with four base brackets which allow you to anchor your timber posts to a solid surface (e.g. concrete, decking or stone). The three arm corner bracket connects the remaining posts of your pergola to create the core frame of your outdoor structure.
