Product Details
Features & Inclusions
Brackets Precision Crafted for 140x140mm Timber Fit (No Shaving)
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel
4 x Base Brackets to anchor timber posts securely to solid surface (e.g. concrete or decking).
4 x Corner Brackets to connect posts and create a sturdy frame.
16 x Rafter Brackets to install eight 140x45mm timber beams to your pergola
176 x 12g/38mm Black Plated Fastening Screws to securely fasten brackets to timber.
A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.
Modaprax Tips

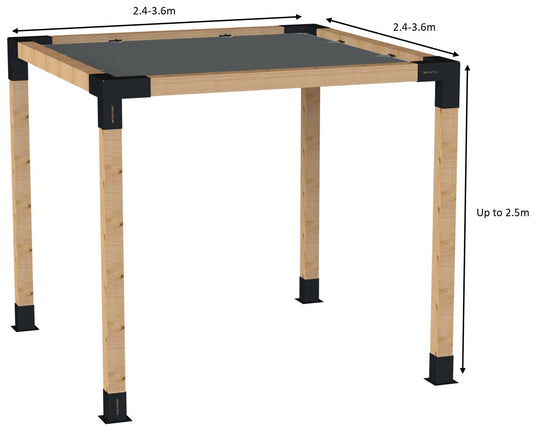

The most common height for a Modaprax Pergola is 2.5m and spans up to 4m.

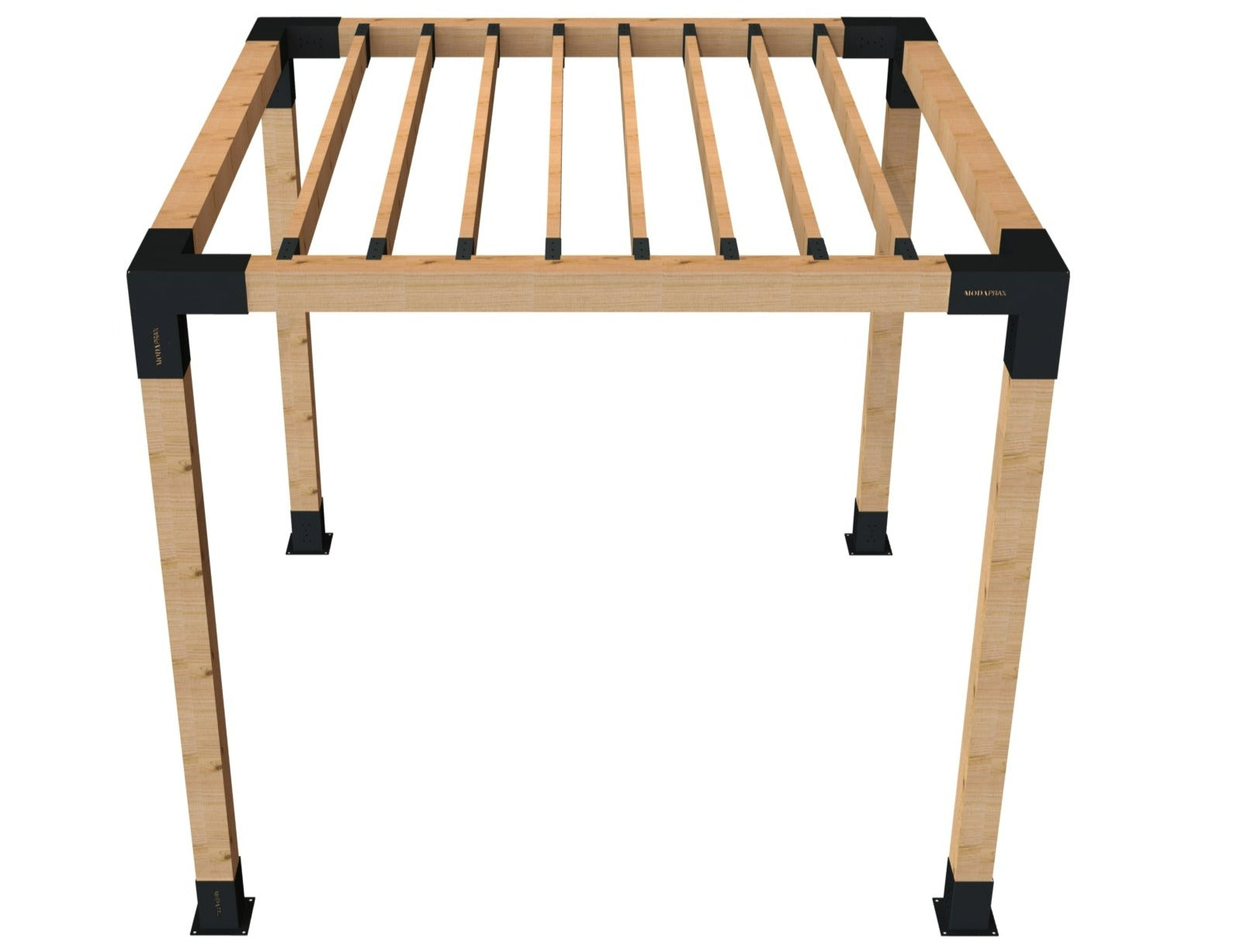

If installing 8 rafters, we recommend a maximum span of 3m (allowing 288.3mm spacing between rafter beams).
For pergolas frames greater than 3m spans, you can order additional 140x45 Top Rafter Brackets here.
To estimate space between rafter brackets:
Step 1: Measure exact span of your timber frame.
Step 2: Count the number of spaces between rafters (no. of rafters +1).
Step 3: Estimate the space between each rafter fastening point = Span/(no. of rafters +1).
Timber Required
Our brackets are designed to seamlessly fit 140x140 timber - This size was chosen given its availability in a premium dressed finish. Personalise your pergola by selecting from a variety of timber styles and lengths at your local timber warehouse.
Assuming an 8 Rafter Timber Pergola with 2.4-3m spans:
N.B. For 3.6m pergolas, you can order more 140x45m timber after ordering your additional 90x35 Rafter Brackets here.
Product Specs
Our brackets are designed for optimal fit with 140x140mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.
Bracket Features:
Arm Opening Designed for 140x140mm timber fit
Arm Opening (Interior): 143 x 143mm
Arm Opening (Exterior): 149 x 149mm
Arm length: 230mm
Steel Thickness: 3mm Steel
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 12mm
Specification of Top Rafter:
Designed for 140 x 45 timber fit
Arm Opening (Interior): 143 x 48mm
Arm Opening (Exterior): 147 x 45mm
Steel Thickness: 2mm Steel
Bracket dimensions (L x W x H): 169 x 52 x 147mm
Three Fastening Holes: 7 mm
A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.
Returns
We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.
Premium Pergola Bracket Kits for 140x140 Posts
Step into the realm of outdoor luxury with our Premium Pergola Brackets for 140x140 Posts! It's not just a pergola; it's a statement piece for cozy gatherings and unforgettable moments with family and friends
Why choose Modaprax?
Strength & Durability: Our brackets lay the foundation for a sturdy frame and structure that is built to last.
Premium Aesthetics & Modern Look: Our brackets not only provide strength, but also add a touch of elegance and modernity to your outdoor space.
Endless Customisation: Unleash your creativity and personalise your pergola like never before! With our brackets, the sky's the limit. Tailor your design to suit your unique space.
Let's elevate your outdoor living experience by building something extraordinary together!
