Pergola Kit for 140x140 Timber Posts

Brackets Precision Crafted for 140x140mm Timber Fit (No Shaving)
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel

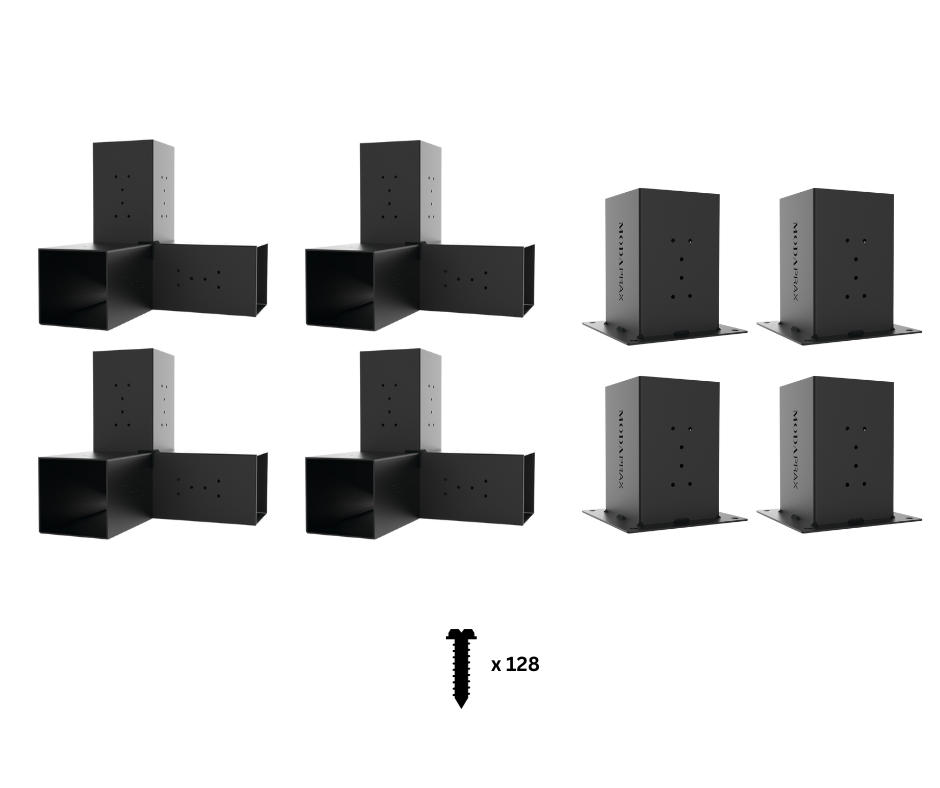

4 x Base Brackets to anchor timber posts securely to solid surface (e.g. concrete or decking).

4 x Corner Brackets to connect posts and create a sturdy frame.

128 x 12g/38mm Black Plated Fastening Screws to fasten your brackets securely to the timber.

For instructions on how to install a Modaprax Pergola using these brackets, please access the Modaprax Instructions Guide here.

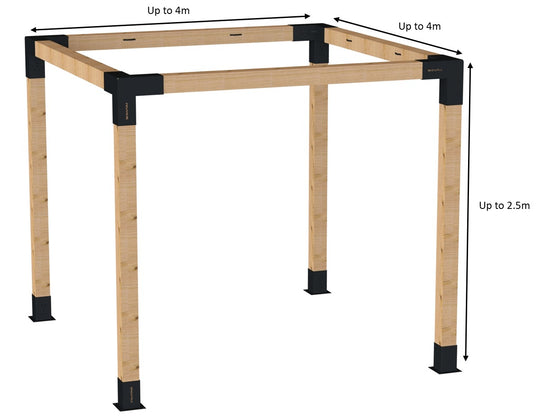

You can customize your freestanding pergola with spans of up to 4m in length. The most common height for a Modaprax Pergola is 2.5m.

Our brackets are designed to seamlessly fit 140x140 timber - This size was chosen given its availability in a premium dressed finish. Personalise your pergola by selecting from a variety of timber styles and lengths at your local timber warehouse.

Our brackets are designed for optimal fit with 140x140mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.

Base Bracket Dimensions:
Arm Opening Designed for 140x140mm timber fit
Arm Opening (Interior): 143 x 143mm
Arm Opening (Exterior): 149 x 149mm
Arm length: 230 mm
Steel Thickness: 3mm
Base dimensions: 220 x 220mm
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 12mm

Corner Bracket Dimensions
Arm Opening Designed for 140x140mm timber fit
Arm Opening (Interior): 143 x 143mm
Arm Opening (Exterior): 149 x 149mm
Arm Length: 230 mm
Steel Thickness: 3mm
Bracket Dimensions (L x W x H): 379 x 379 x 379mm
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm

A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.

We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.
