Product Details
Features & Inclusions
Brackets Precision Crafted for 140x140mm Timber Fit (No Shaving)
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel
6 x Base Brackets to anchor timber posts securely to solid surface (e.g. concrete or decking).
2 x Extension Brackets to connect posts and extend the length of your pergola.
4 x Corner Brackets to connect posts and create a sturdy frame.
2 x Shade Sails with several size options; 2.24x2.24m, 2.24x2.84m, 2.84x2.84m, 2.84x3.44m & 3.44x3.44m.
Note: Shade Sail sizes designed to fit standard timber lengths available at your timber warehouse (e.g. 2.24x2.24m to fit 2.4x24m or 2.84x2.84m with 3x3m)
256 x 12g/38mm Black Plated Fastening Screws to securely fasten brackets and shade sail to timber.

Modaprax Tips
For instructions on how to install a Modaprax Pergola with Shade Sail, please access the Modaprax Instructions Guide here.

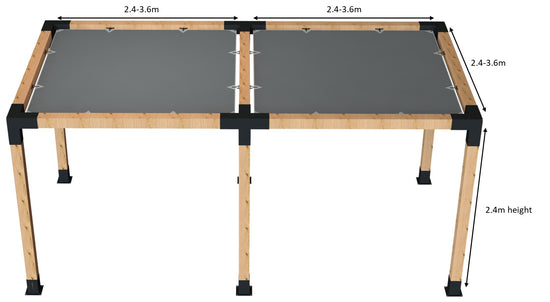

You can customize your extended pergola with shade sail with spans between 2.4m to 3.6m to fit our various shade sail sizes. The most common height for a Modaprax Pergola is 2.5m.
N.B. Allow for 16cm additional span for the timber relative to shade sail. For example, if you choose a 2.84x2.84m shade sail, timber should be 3x3m. This gives you a 7-8cm spacing on each side after stretching the shade sail with the tension straps.

Timber Required
Product Specs
Our brackets are designed for optimal fit with 140x140mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.
Bracket Features:
Arm Opening Designed for 140x140mm timber fit
Arm Opening (Interior): 143 x 143mm
Arm Opening (Exterior): 149 x 149mm
Arm length: 230mm
Steel Thickness: 3mm Steel
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 12mm
Shade Sail
Size options: 2.24x2.24m, 2.24x2.84m, 2.84x2.84m, 2.84x3.44m and 3.44x3.44m
Shade Sail Features
Synthetic high density polyethylene knitted fabric
Tension straps with buckles to tighten shade sail to Pergola Frame
Easy to connect and take down
Note: The polyethylene knitted fabric of the shade sail may seem smaller at first, but it's crafted for a snug fit, accommodating stretch over time for lasting flexibility in your pergola
A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.
Returns
We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.

Premium Pergola Bracket Kits for 140x140 Posts
Step into the realm of outdoor luxury with our Premium Pergola Brackets for 140x140 Posts! It's not just a pergola; it's a statement piece for cozy gatherings and unforgettable moments with family and friends
Why choose Modaprax?
Strength & Durability: Our brackets lay the foundation for a sturdy frame and structure that is built to last.
Premium Aesthetics & Modern Look: Our brackets not only provide strength, but also add a touch of elegance and modernity to your outdoor space.
Endless Customisation: Unleash your creativity and personalise your pergola like never before! With our brackets, the sky's the limit. Tailor your design to suit your unique space.
Let's elevate your outdoor living experience by building something extraordinary together!
