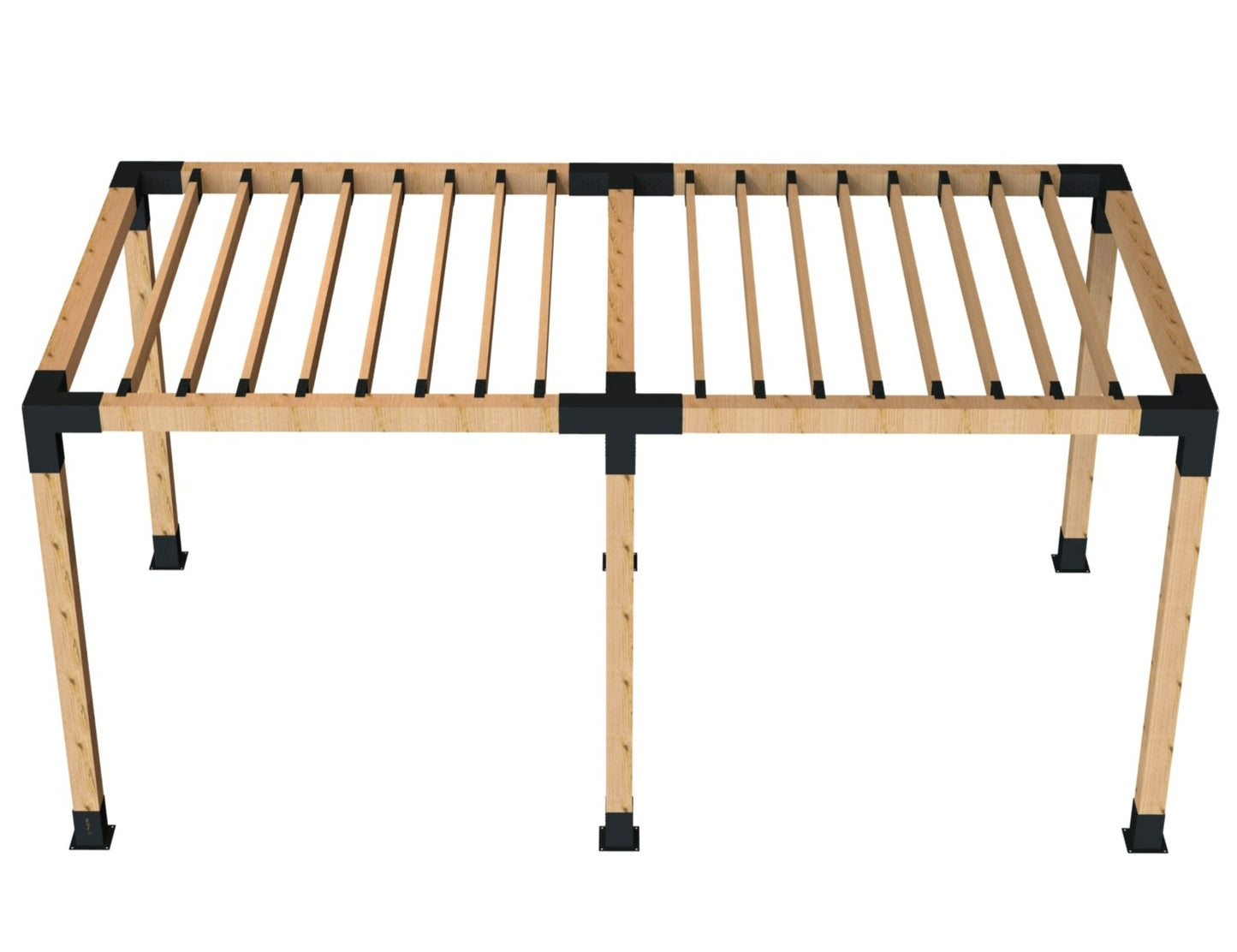

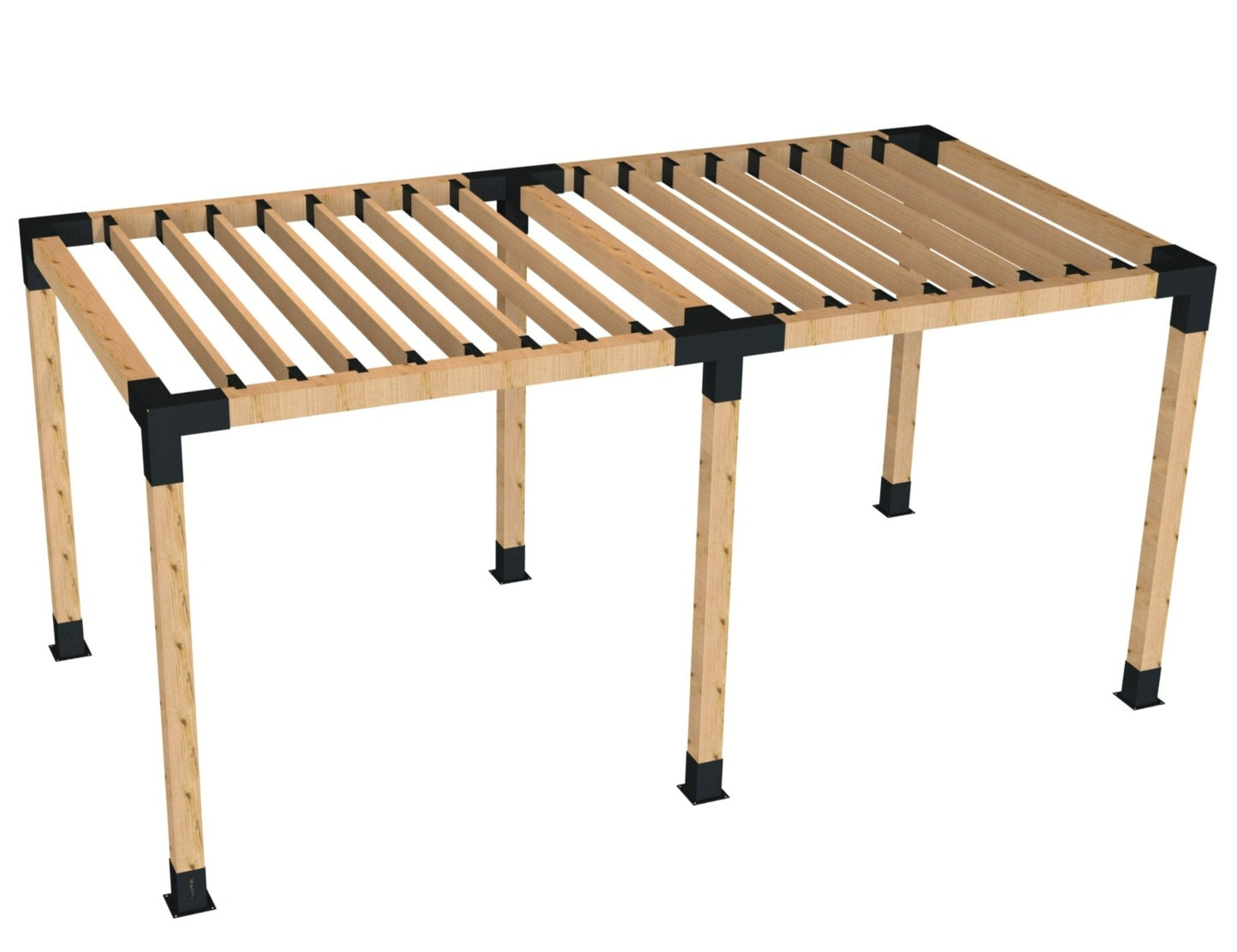

Double Pergola Kit for 140x140 Timber Posts with Top Rafters

Timber not included

Regular price $1,825.00 AUD
Regular price $2,148.00 AUD Sale price $1,825.00 AUD
Sale Sold out
Tax included.

FREE SHIPPING

The 140x140 Double Pergola Kit is an easy to assemble modular solution for building, customising and extending your pergola size to pefectly fit with your space.

The rafter brackets make it easy to install 140x45 timber beams.

  • FREE SHIPPING to anywhere in Australia
  • IN STOCK, 2 business days for Dispatch!

Give us a call (1300 093 808) or send us an email (info@modaprax.com.au) if you need help choosing the right timber sizes. Or reach out to us via our Contact Us page.

Product Details

Features & Inclusions

Brackets Precision Crafted for 140x140mm Timber Fit (No Shaving)
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel

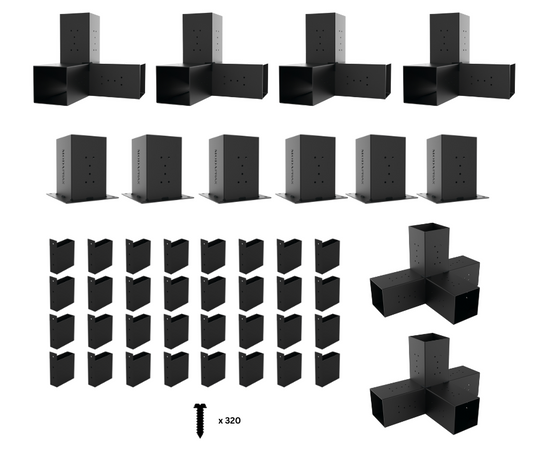

6 x Base Brackets to anchor vertical posts securely to solid surface (e.g. concrete or decking).

2 x Extension Brackets  to connect posts and extend the length of your pergola.

4 x Corner Brackets to connects posts and create a sturdy frame.

32 x Rafter Brackets to install sixteen 140x45mm timber beams to your pergola

320 x 12g/38mm Black Plated Fastening Screws to secure brackets to timber.

files/DoublePergolaKitfor140x140TimberPostswithTopRafters_Components_b70ee216-9417-411a-b189-7484f7e6d662.png

Modaprax Tips

For instructions on how to install a Modaprax Pergola, please access the Modaprax Instructions Guide here.

The most common height for a Modaprax Pergola is 2.4m. If installing 8 rafters, we suggest a maximum span of 3m (allowing 288.3mm spacing between rafter beams).

For pergolas frames with 3-4m spans, you can order more 140x45 Rafter Brackets here.

To estimate space between rafter brackets:

Step 1: Measure exact span of your timber frame.

Step 2: Count the number of spaces between rafters (no. of rafters +1).

Step 3: Estimate the space between each rafter fastening point = Span/(no. of rafters +1).

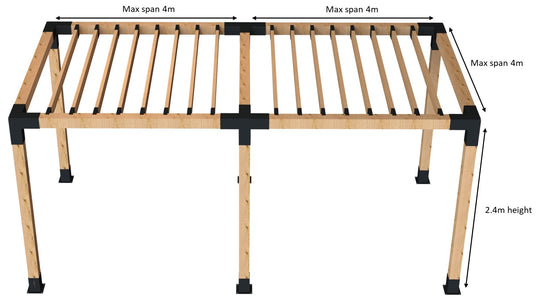

files/Modaprax140x140ExtendedpergolaKit_MeasurementTips_0e91d78d-f41a-42c4-af08-a1e72f2dcc36.jpg Modaprax 140x140 Extended pergola Kit_Measurement betweeen Rafters Tips

Timber Required

Our brackets are designed to seamlessly fit 140x140 timber - This size was chosen given its availability in a premium dressed finish. Personalise your pergola by selecting from a variety of timber styles and lengths at your local timber warehouse.

Assuming an 8 Rafter Timber Pergola with 2.4-3m spans:

files/Timber_required_for_Modaprax_140x140_Double_Pergola_with_16_Rafters.jpg

Product Specs

Our brackets are designed for optimal fit with 140x140mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.

Bracket Features:
Arm Opening Designed for 140x140mm timber fit
Arm Opening (Interior): 143 x 143mm
Arm Opening (Exterior): 149 x 149mm
Arm length: 230mm
Steel Thickness: 3mm Steel
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 12mm

Specification of Top Rafter:
Designed for 140 x 45 timber fit
Arm Opening (Interior): 143 x 48mm
Arm Opening (Exterior): 147 x 45mm
Steel Thickness: 2mm Steel
Bracket dimensions (L x W x H): 169 x 52 x 147mm
Three Fastening Holes: 7 mm

A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.

Returns

We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.

Premium Pergola Bracket Kits for 140x140 Posts

Step into the realm of outdoor luxury with our Premium Pergola Brackets for 140x140 Posts! It's not just a pergola; it's a statement piece for cozy gatherings and unforgettable moments with family and friends

Why choose Modaprax?

Strength & Durability: Our brackets lay the foundation for a sturdy frame and structure that is built to last.

Premium Aesthetics & Modern Look: Our brackets not only provide strength, but also add a touch of elegance and modernity to your outdoor space.

Endless Customisation: Unleash your creativity and personalise your pergola like never before! With our brackets, the sky's the limit. Tailor your design to suit your unique space.

Let's elevate your outdoor living experience by building something extraordinary together!
