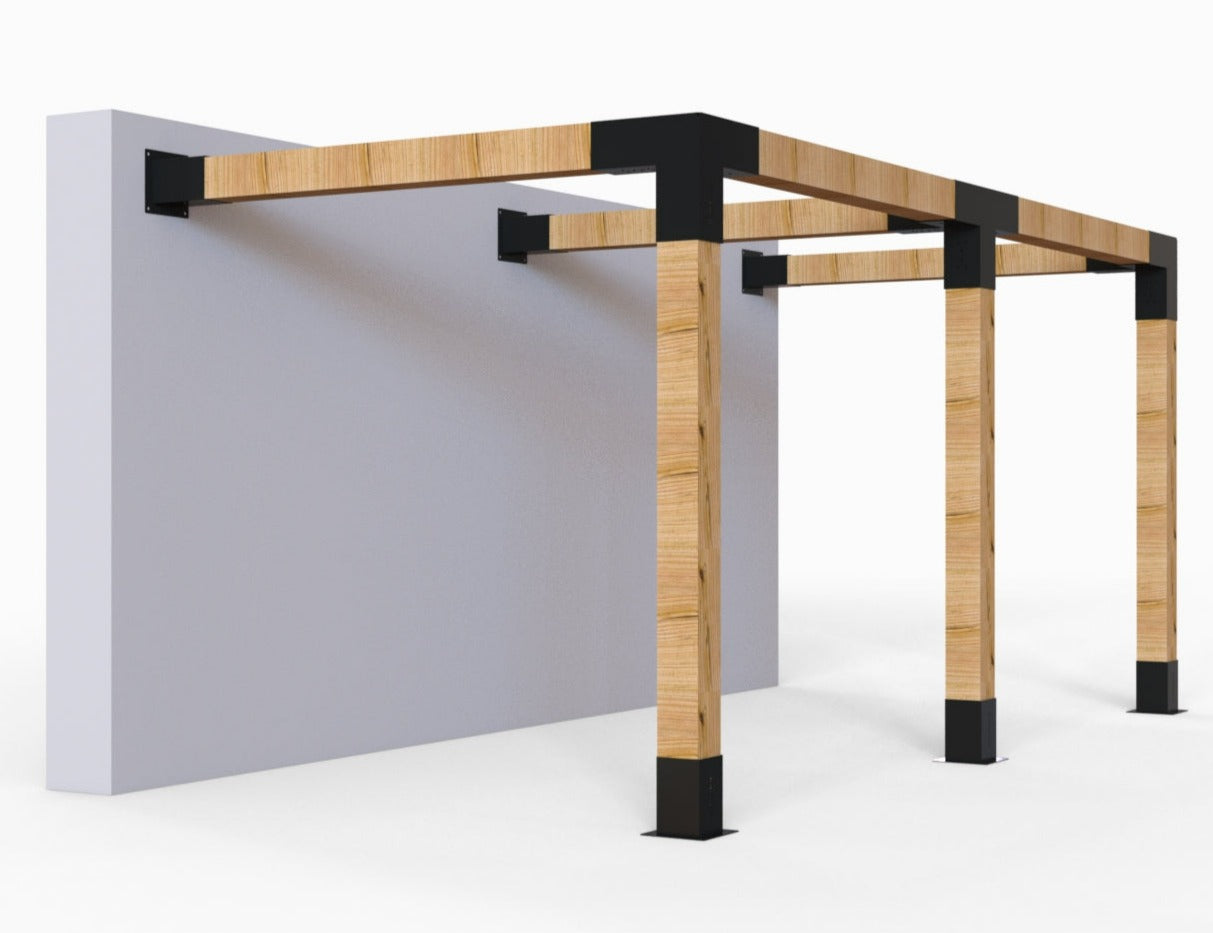

Double Wall Mounted Pergola Kit for 140x140 Timber Posts

Brackets Precision Crafted for 140x140mm Timber Fit (No Shaving)
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel

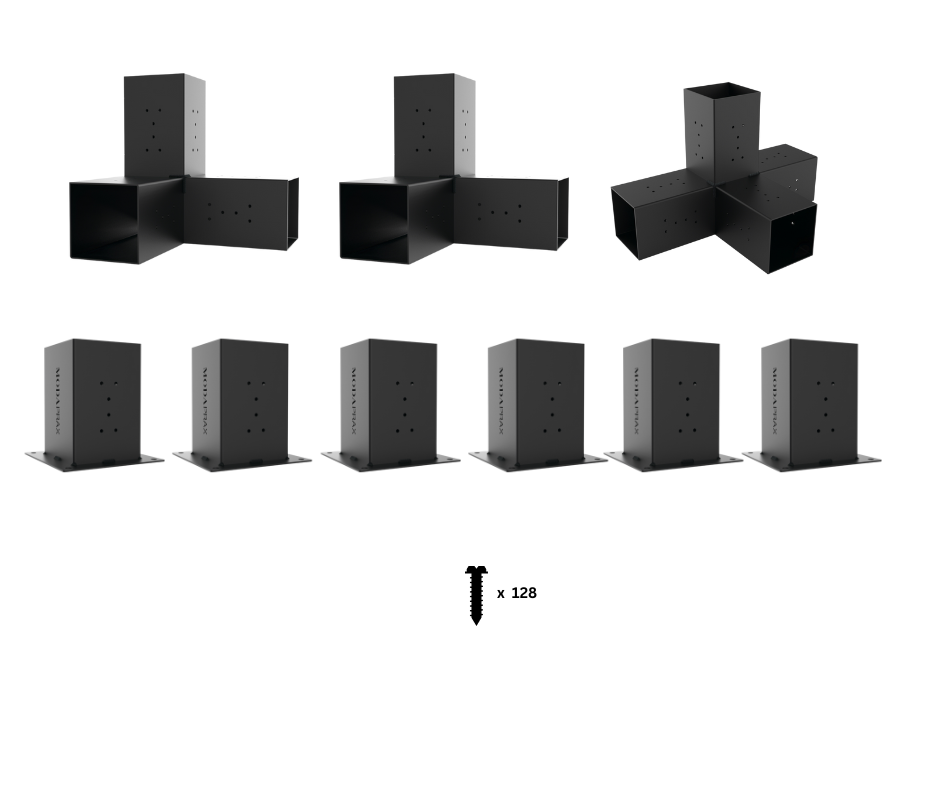

6 x Base Brackets: 3 Brackets to mount your pergola frame to a wall and 3 to anchor timber posts securely to a solid surface (e.g. concrete or decking).

2 x Corner Brackets to connect posts and create a sturdy frame.

1 x Extension Bracket to connect posts and extend the length of your pergola.

128 x 12g/38mm Black Plated Fastening Screws to securely fasten brackets to timber.

For instructions on how to install a Modaprax Pergola with Shade Sail, please access the Modaprax Instructions Guide here.

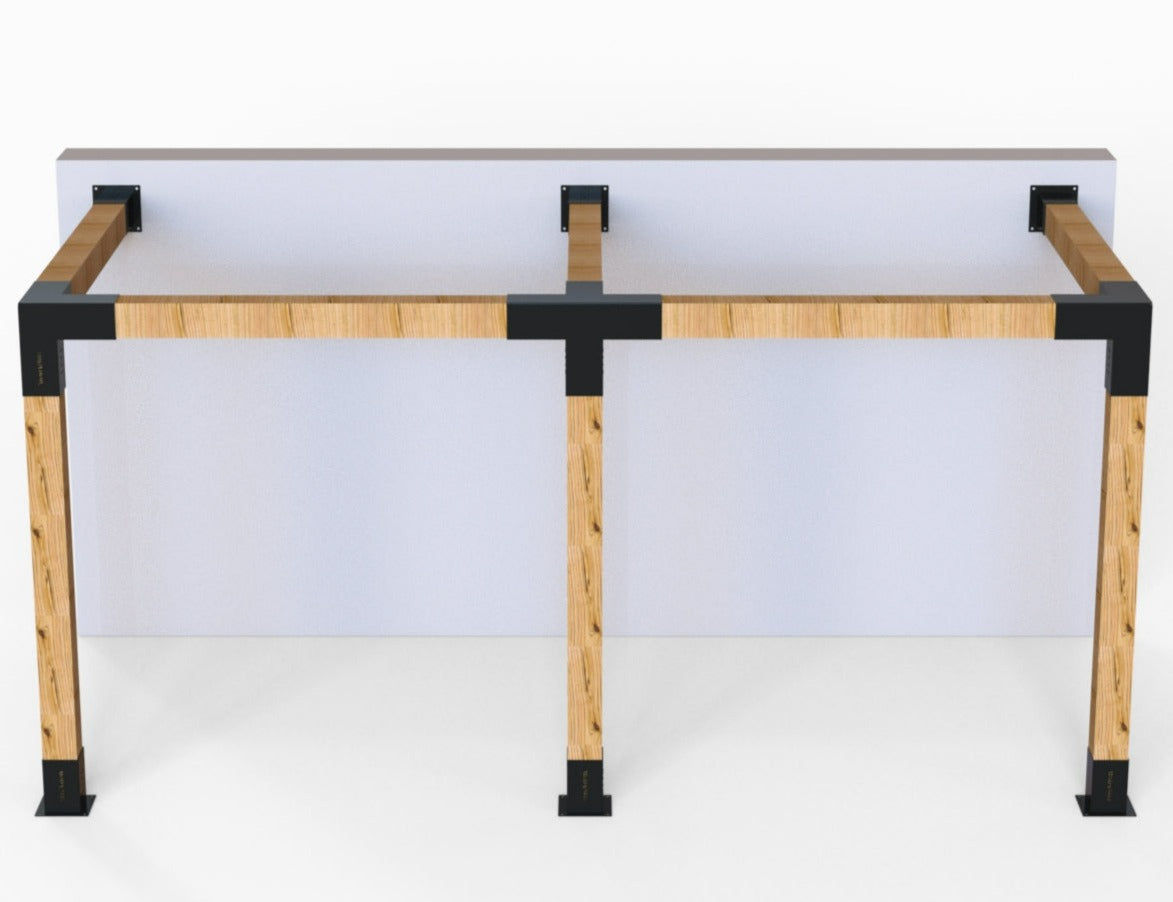

You can customize your 140x140 Double Wall Mounted Pergola with spans up to 4m. The most common height for a Modaprax Pergola is 2.5m.

Timber Required

Our brackets are designed for optimal fit with 140x140mm timber. To avoid shaving the timber, we have precision crafted their size and considered the clearance needed with the internal welding in the brackets.

Bracket Features:
Arm Opening Designed for 140x140mm timber fit
Arm Opening (Interior): 143 x 143mm
Arm Opening (Exterior): 149 x 149mm
Arm length: 230mm
Steel Thickness: 3mm Steel
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 12mm

A Note on Anchoring Hardware
Our kits come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.
