Modaprax

Base Bracket for 140x140 Timber Posts | Packs

Regular price $289.00 AUD
Regular price Sale price $289.00 AUD
Sale Sold out
Tax included.
Packs

Strong & Durable Steel Base Bracket for 140x140 timber posts with Premium Powder Coating.

An essential component that sets the stage for a sturdy foundation and easy assembly of your pergola with our modular system.


Can be purchased in several bundles: 1 Pack, 2 Pack or 4 Pack.

Pergola Base Bracket for 140x140 Post_Modaprax

  • FREE SHIPPING to anywhere in Australia
  • Available from 9 February, 2 business days for Dispatch!

Product Details

Features & Inclusions

Base Brackets Precision Crafted for 140x140mm Timber Fit
Weather-resistant & rust protective coating
Laser-cut, folded and internally welded for premium quality finish
10-year Warranty on Steel

Fastening Hardware
32 x 12G 38mm Black Coated Pan Head Self Tapping screws to secure timber to bracket

A Note on Anchoring Hardware
Our brackets come without the anchoring hardware as various flooring types (e.g. concrete, brick or timber decking) require different screws/bolts. The perfect anchoring hardware is easily accessible at your local hardware store who will advise you on selecting the ideal components.

Product Specs

Our brackets are designed for optimal fit with 90x90mm timber. We have precision crafted their size, considering the internal welding of the brackets.

Bracket Features:
Arm Opening Designed for 140x140mm timber fit
Arm Opening (Interior): 143 x 143mm
Arm Opening (Exterior): 149 x 149mm
Arm length: 230 mm
Steel Thickness: 3mm
Base dimensions: 220 x 220mm
Colour: Black (Powder Coated)
Six Fastening Holes: 7mm
Anchoring Holes: 12mm

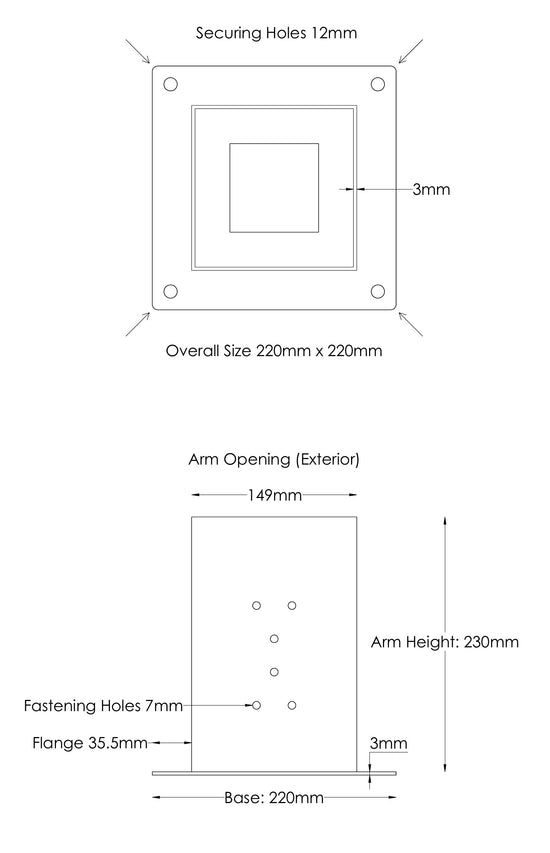

files/140x140BaseBracketDimensions.jpg

Returns

We will be happy to assist you with any return and exchange of our products in accordance with our return and exchange policies.

Modaprax Base Bracket

Sets the foundation for your pergola or gazebo as part of an easy to assemble modular system.

The base of the bracket has four 12mm sized securing holes that allow you to anchor your 140x140mm pergola posts to a solid surface or mount the posts on a wall.
